DrivePort_Control_SW
€909.64
Product information "DrivePort_Control_SW"

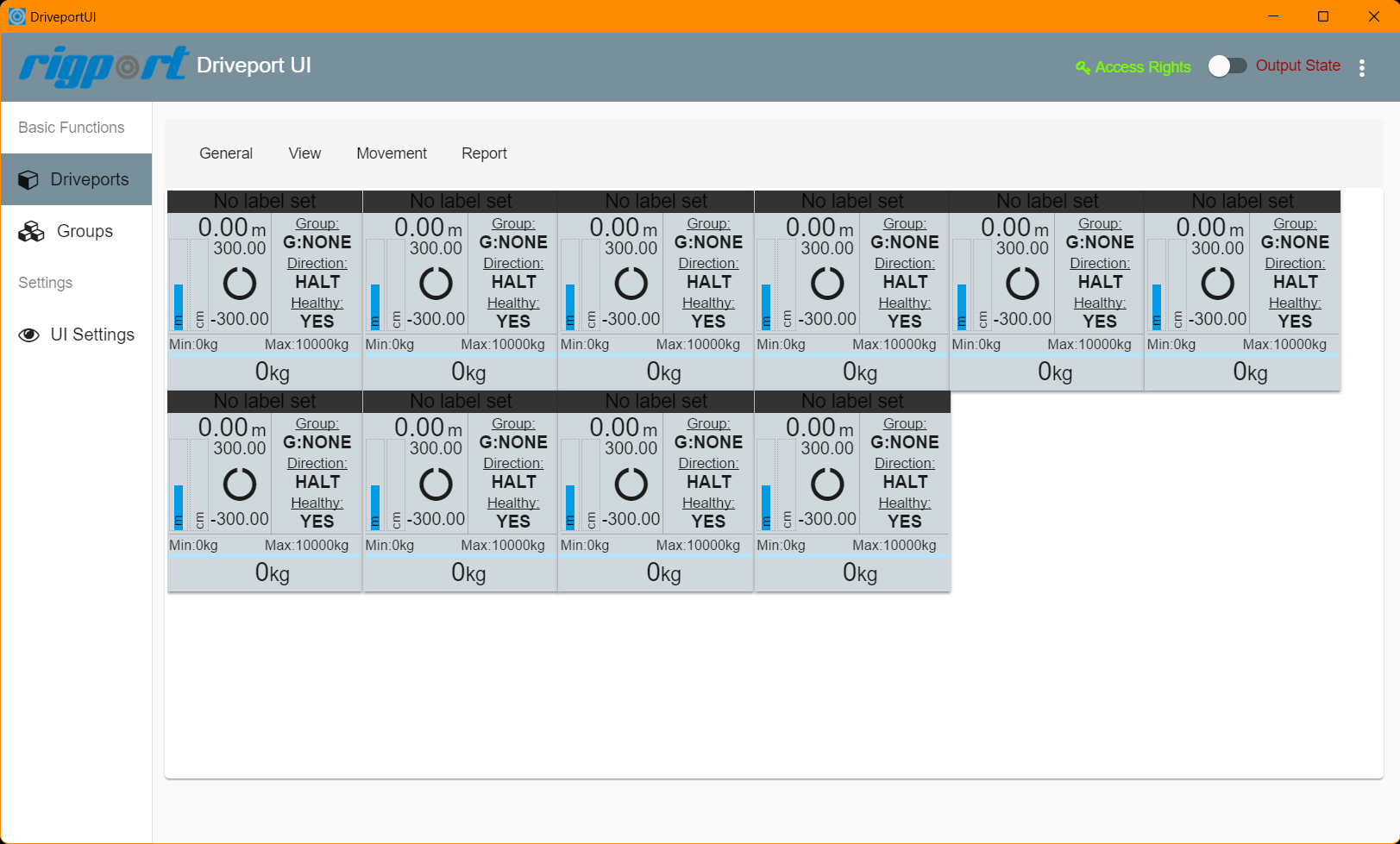

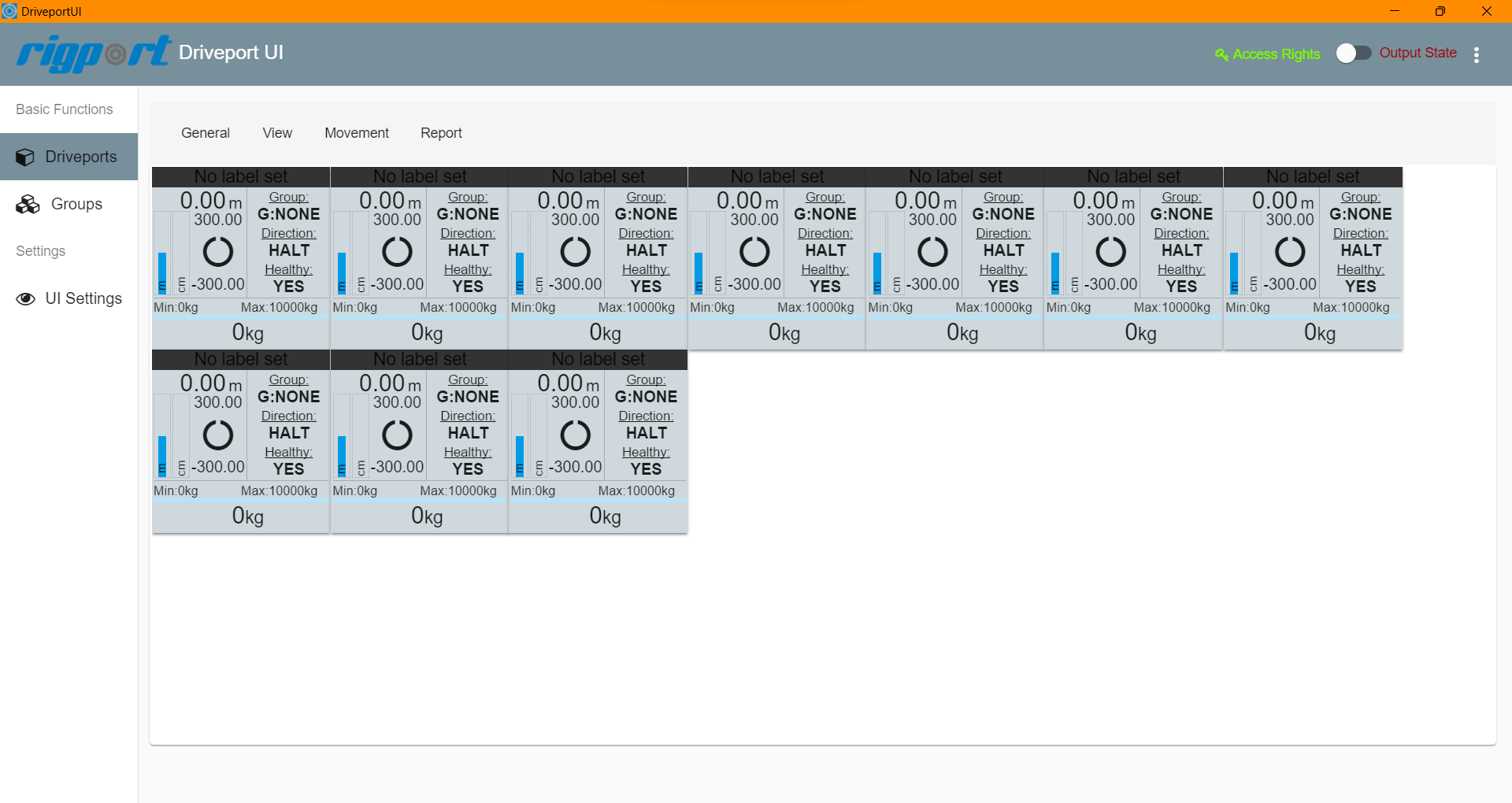

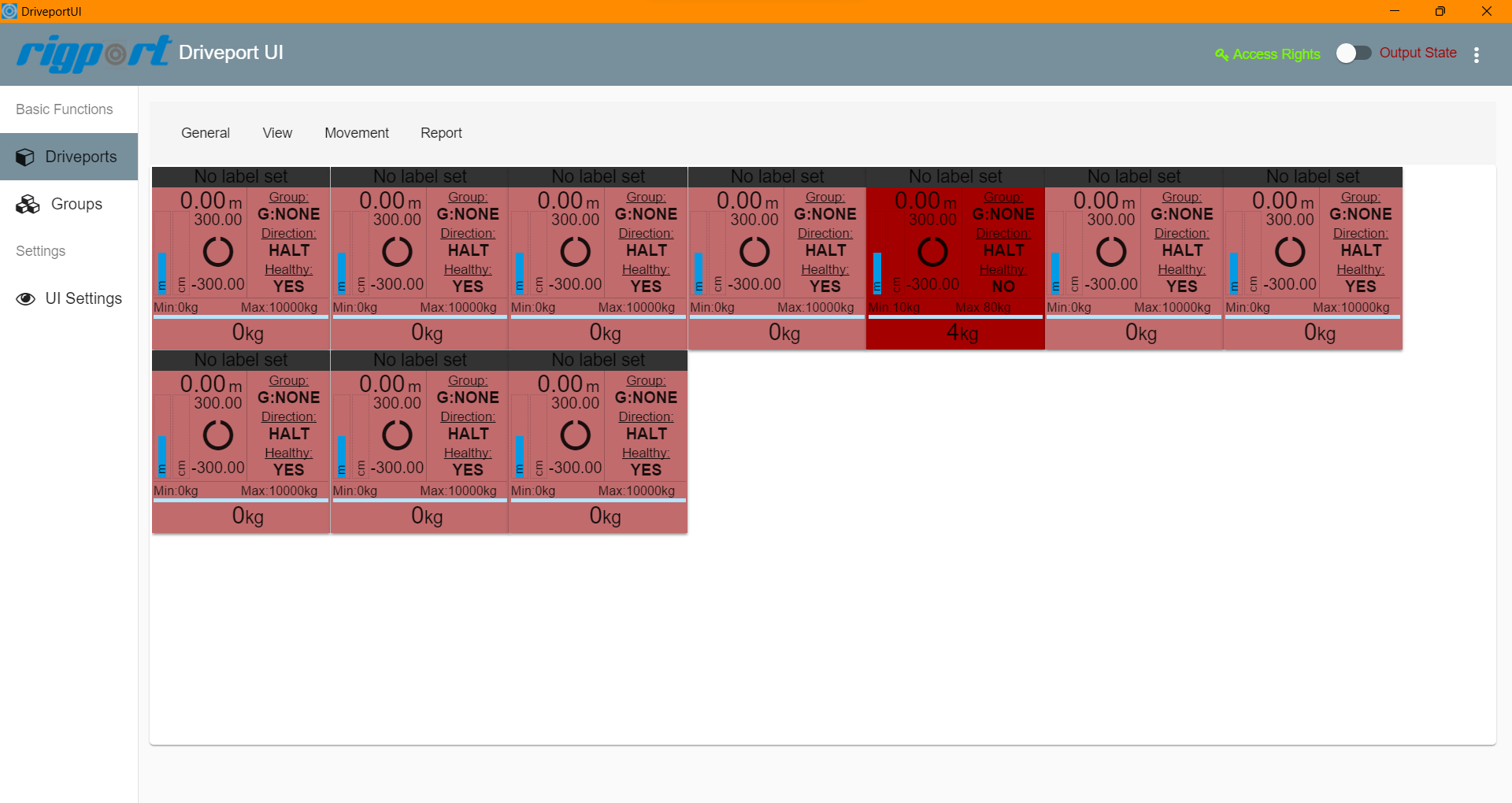

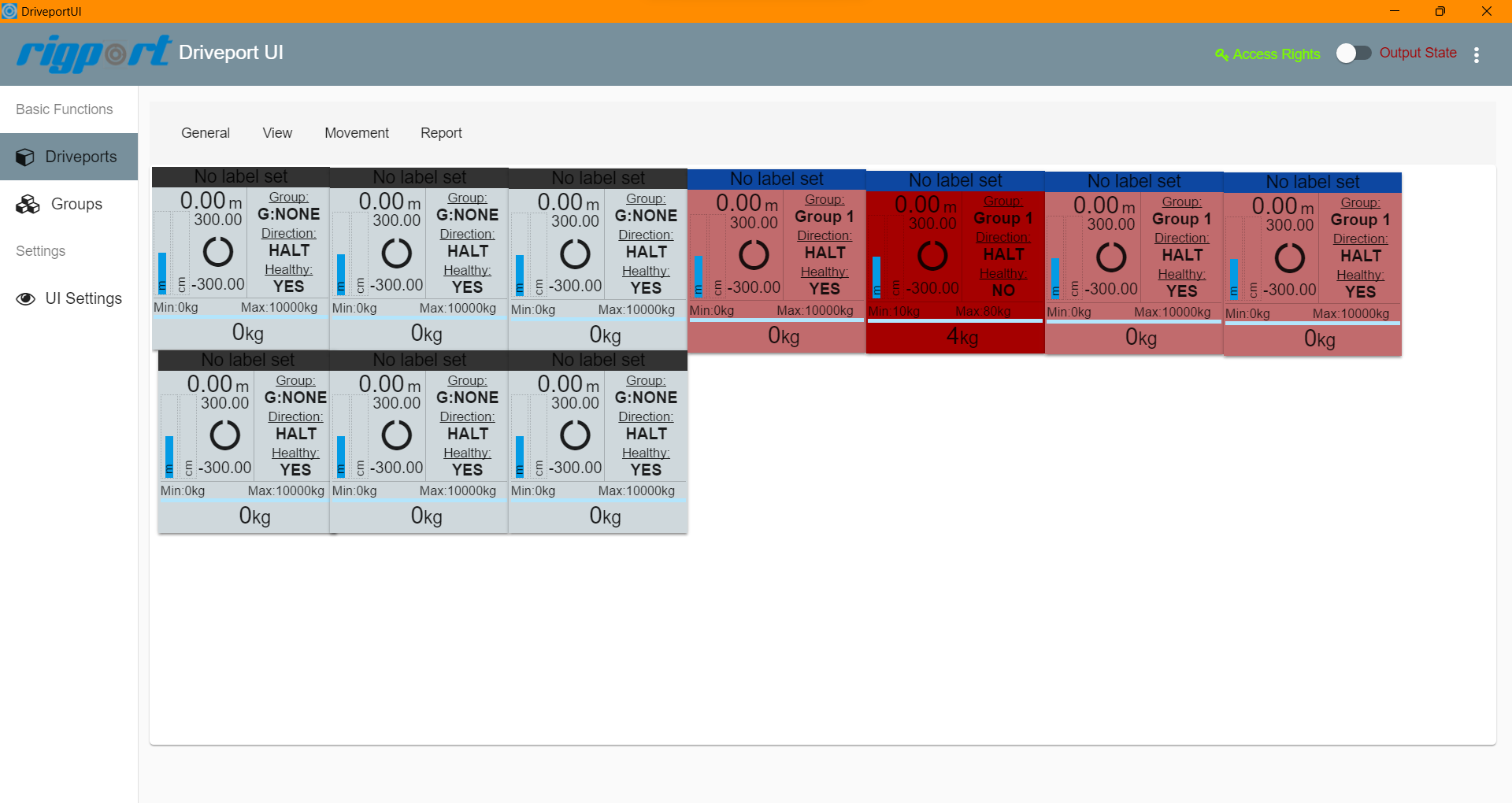

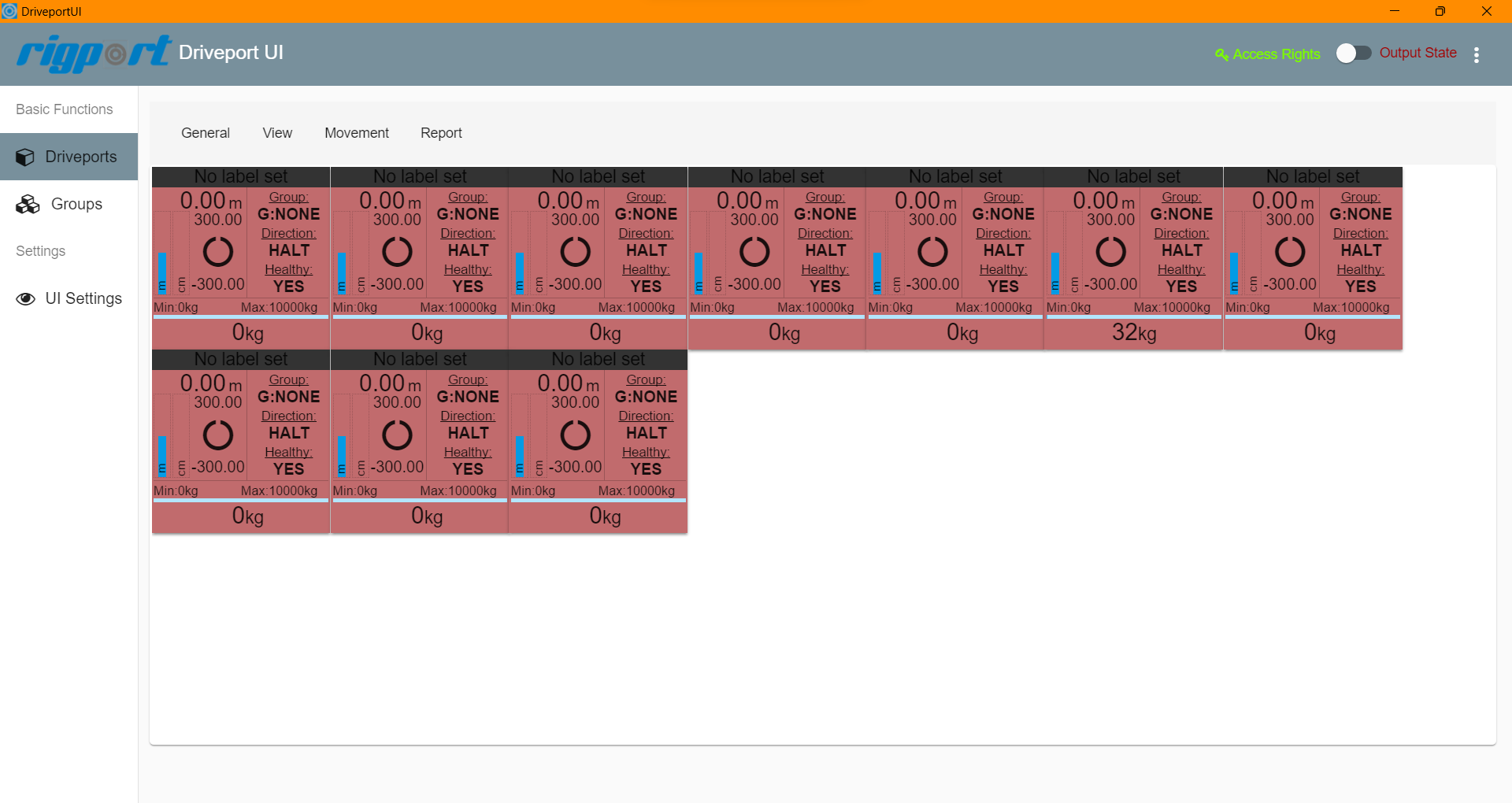

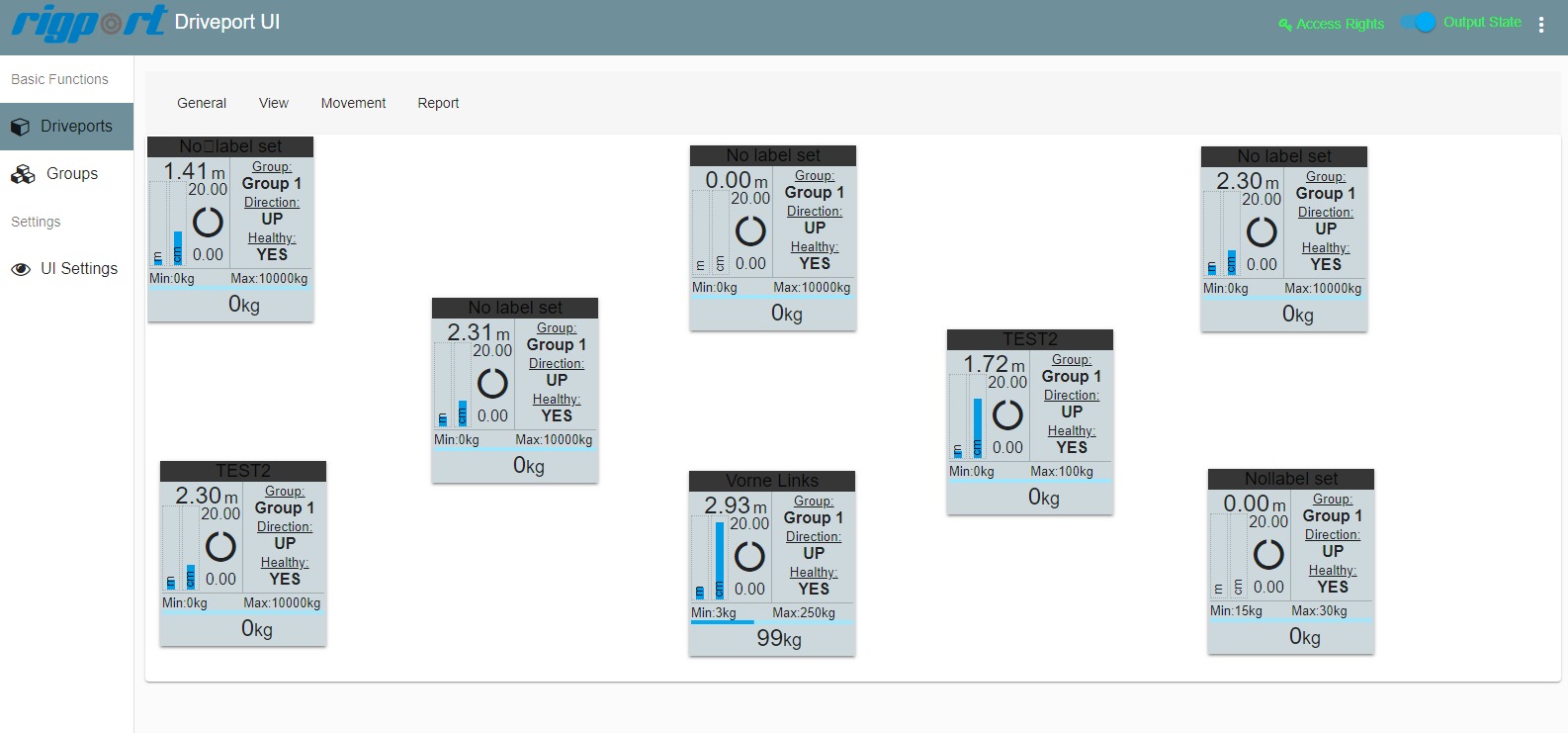

Central DrivePort SW control
Specific features:
- Scenic rides possible

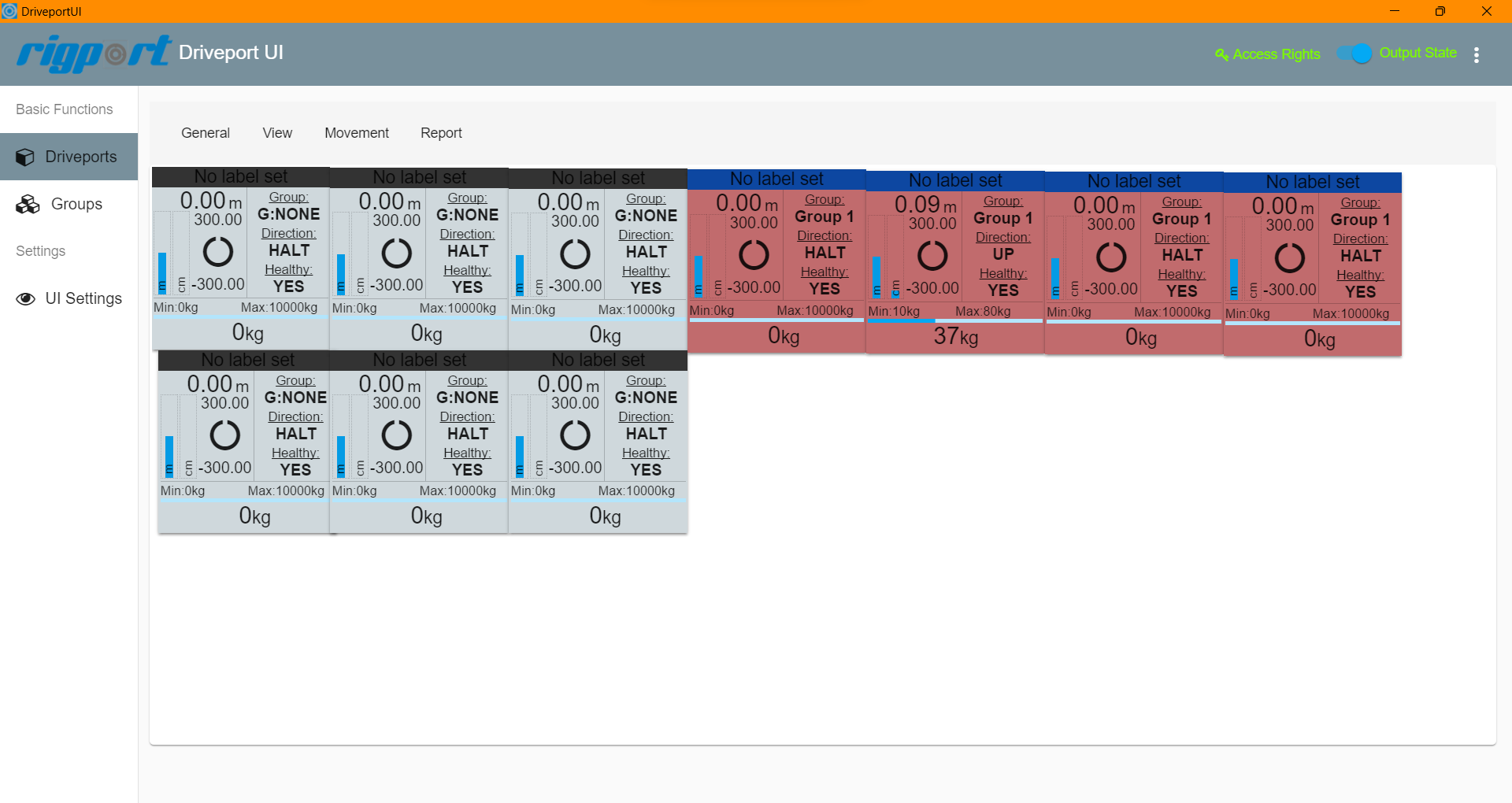

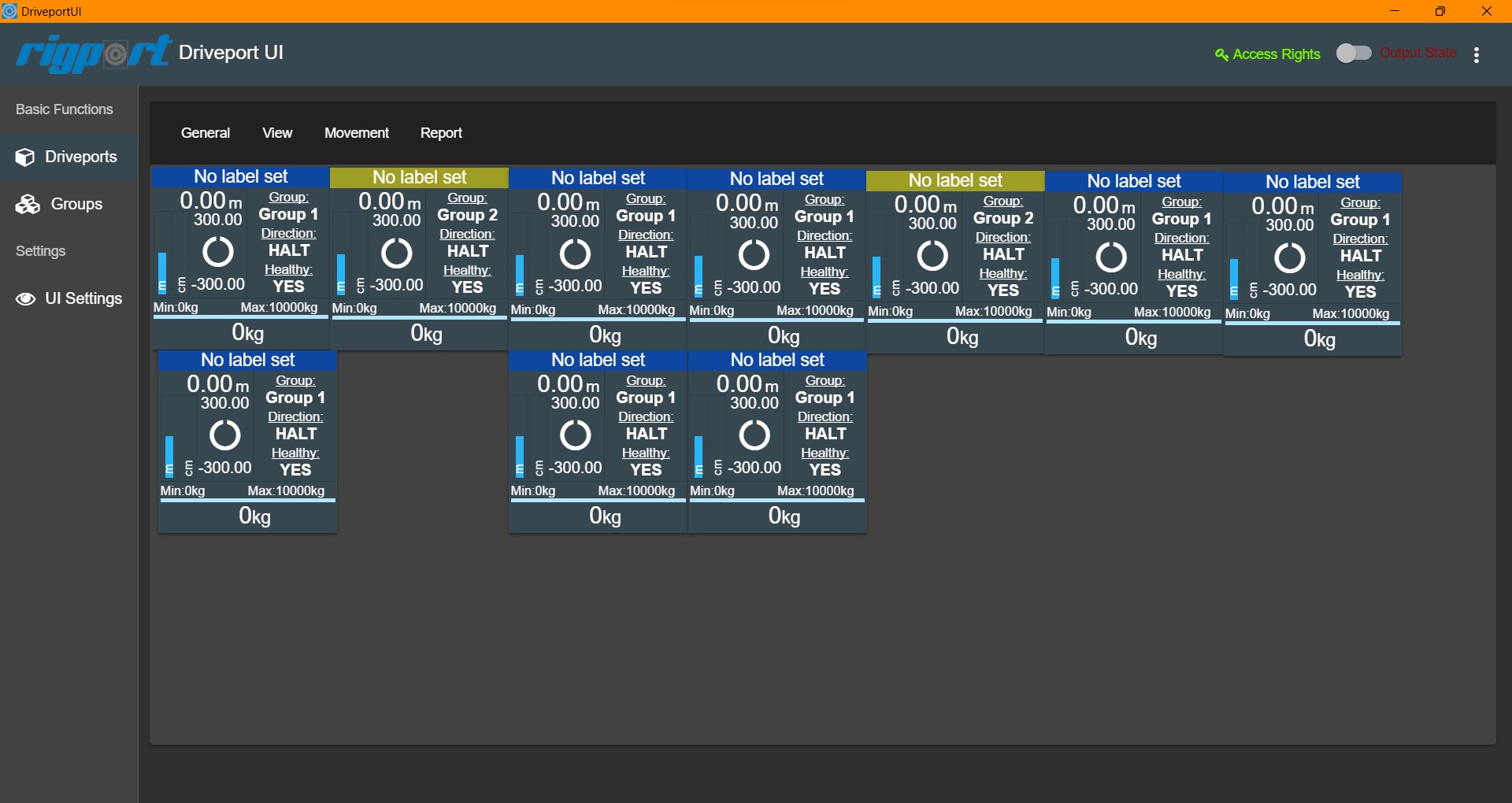

- Convenient direct control: individual and group rides
- Scene control (semi-automated via dead man)
- DMX512/RDM Master

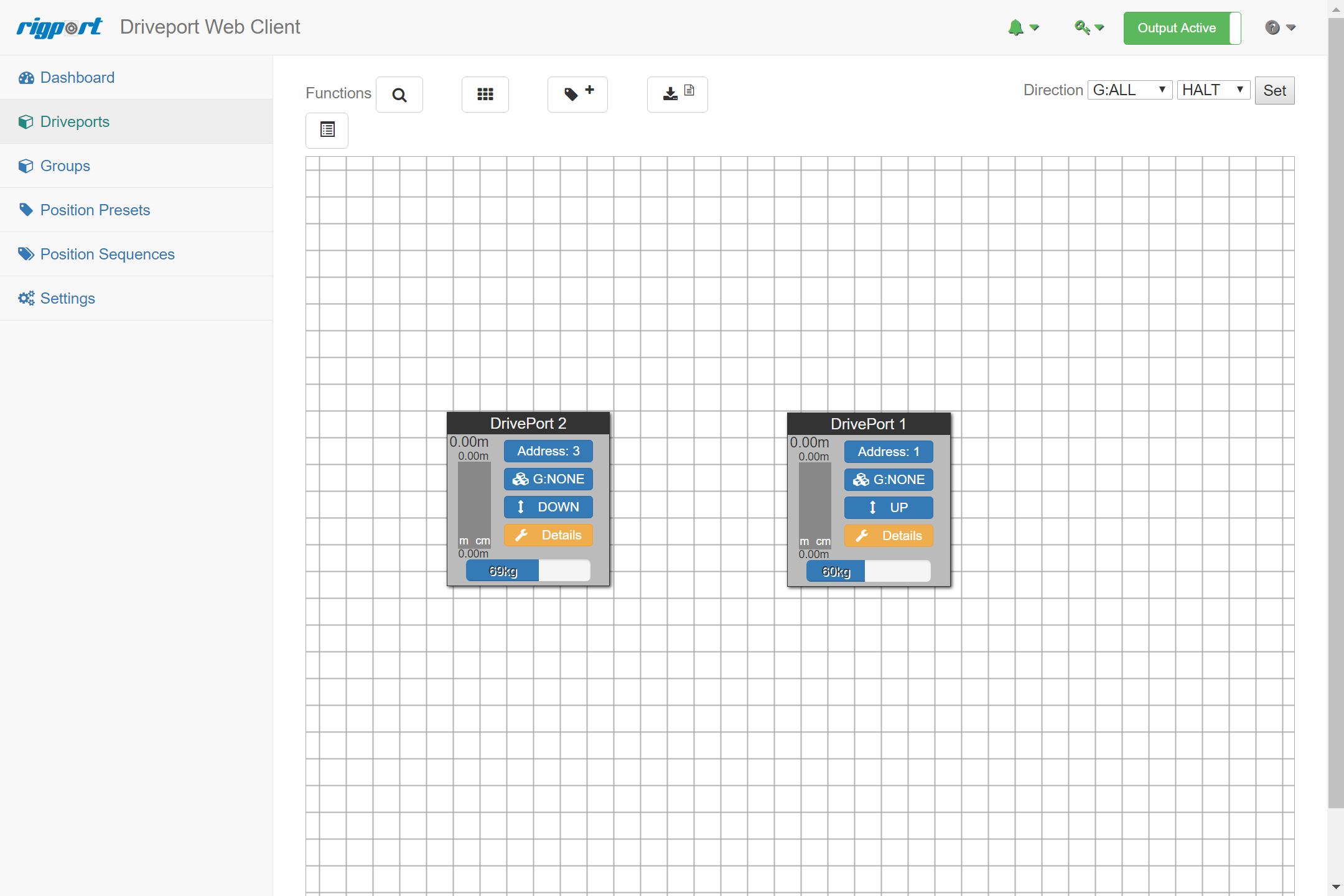

- Web server based (flexibility of expansion and customization)

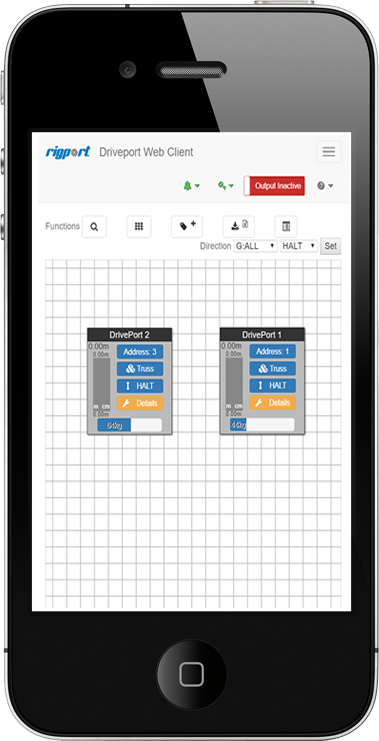

- Remote control via mobile devices
- simple, intuitive parameterization of the system

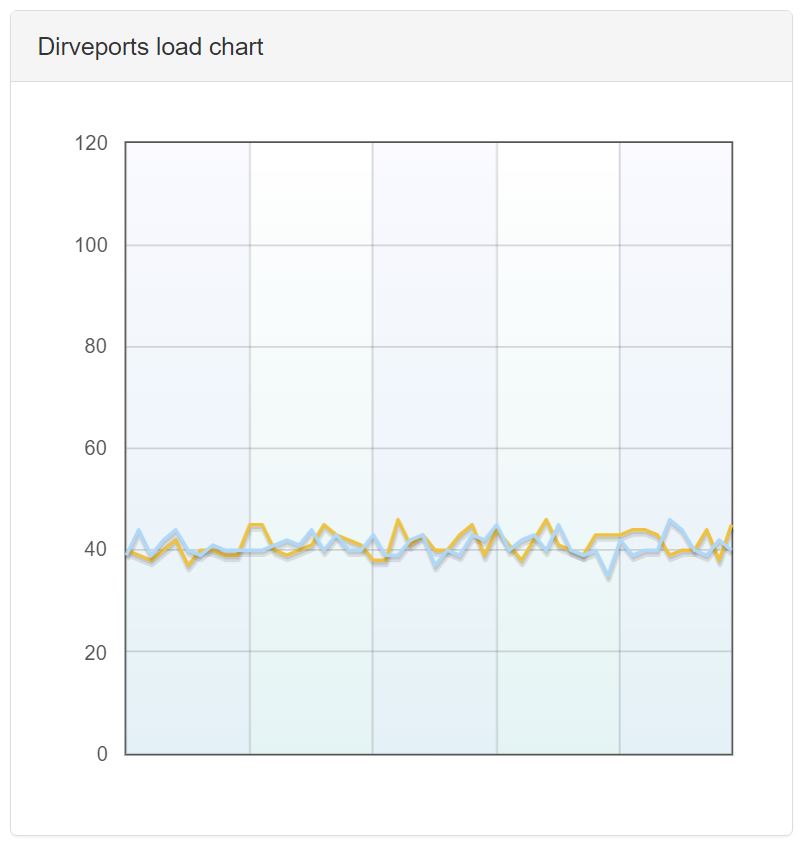

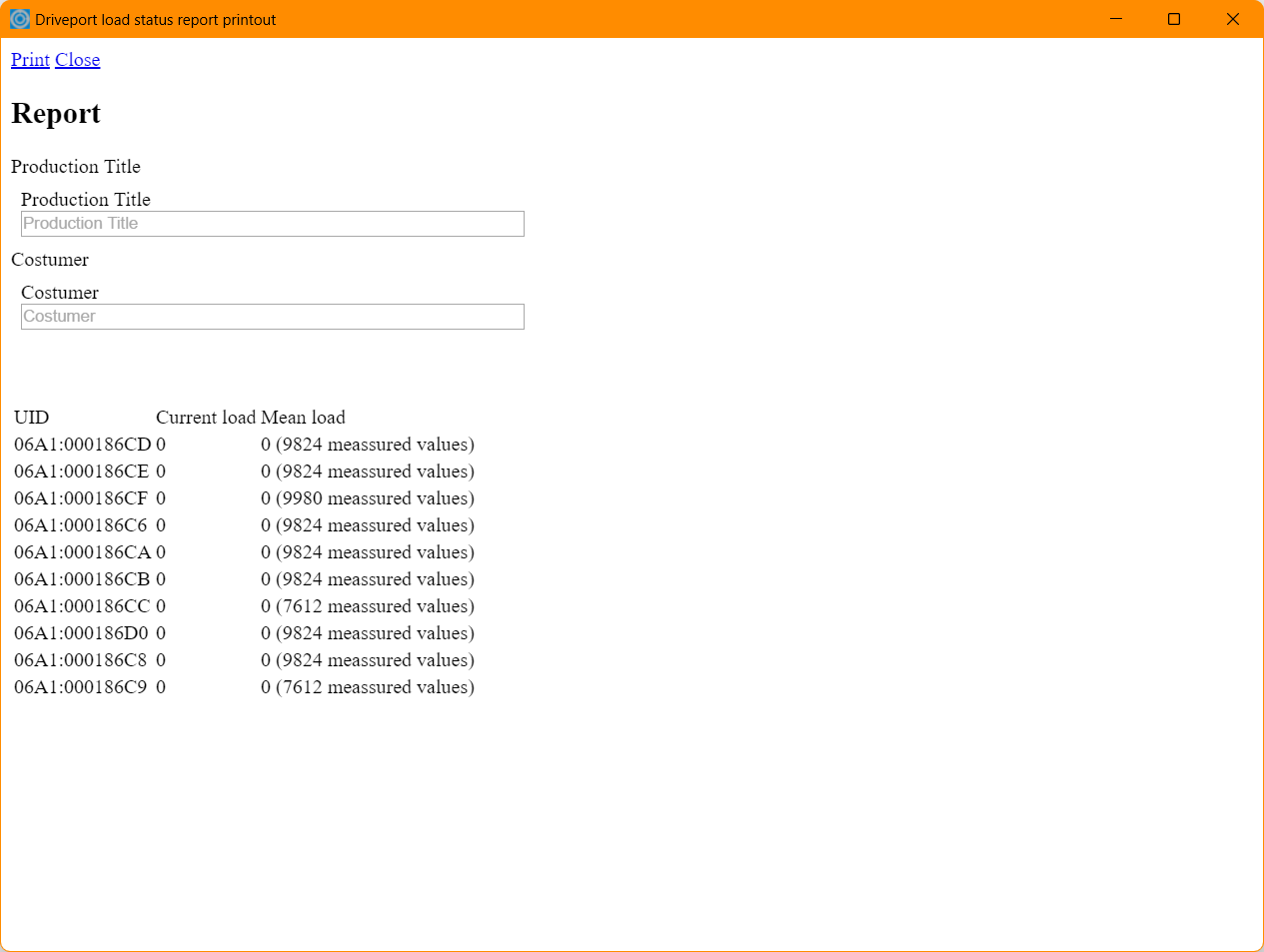

- Data logger, log system for long-term recording of all weight data and relevant activities
- User and rights management

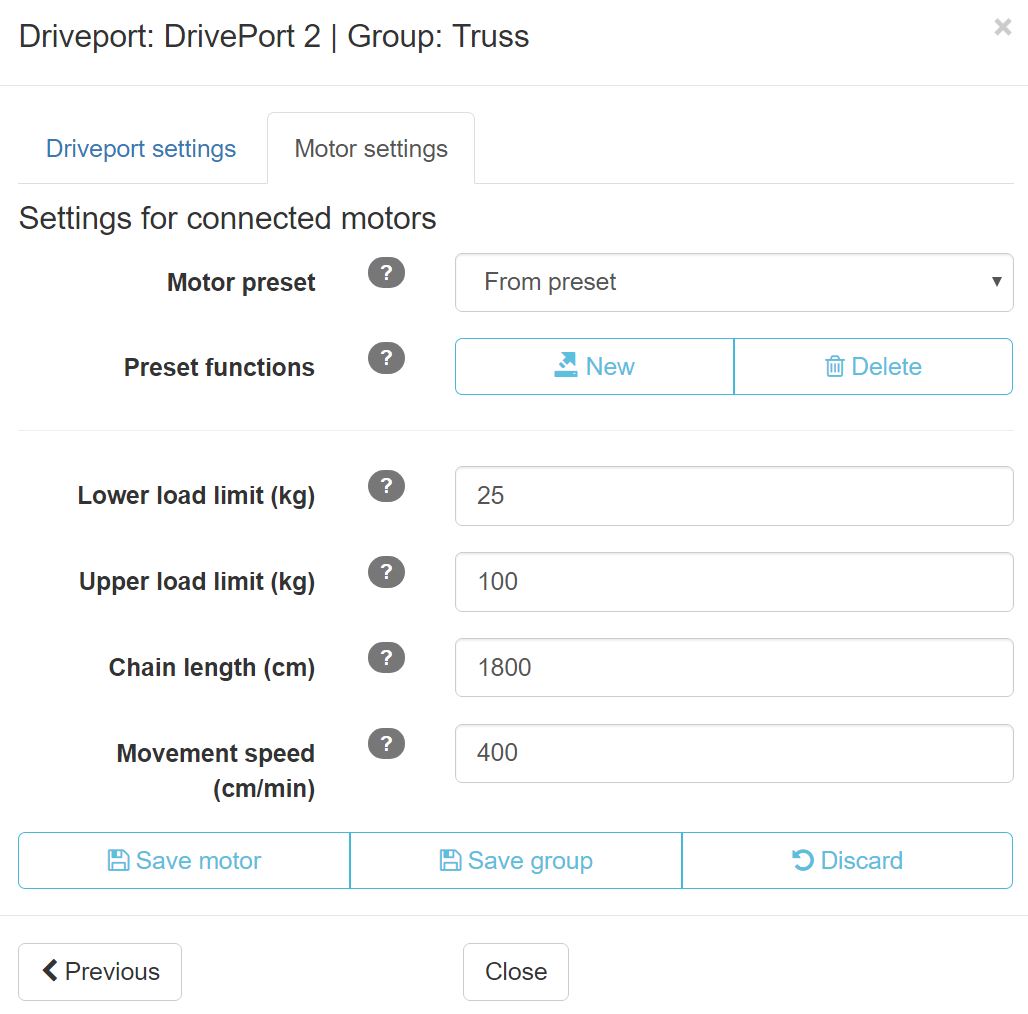

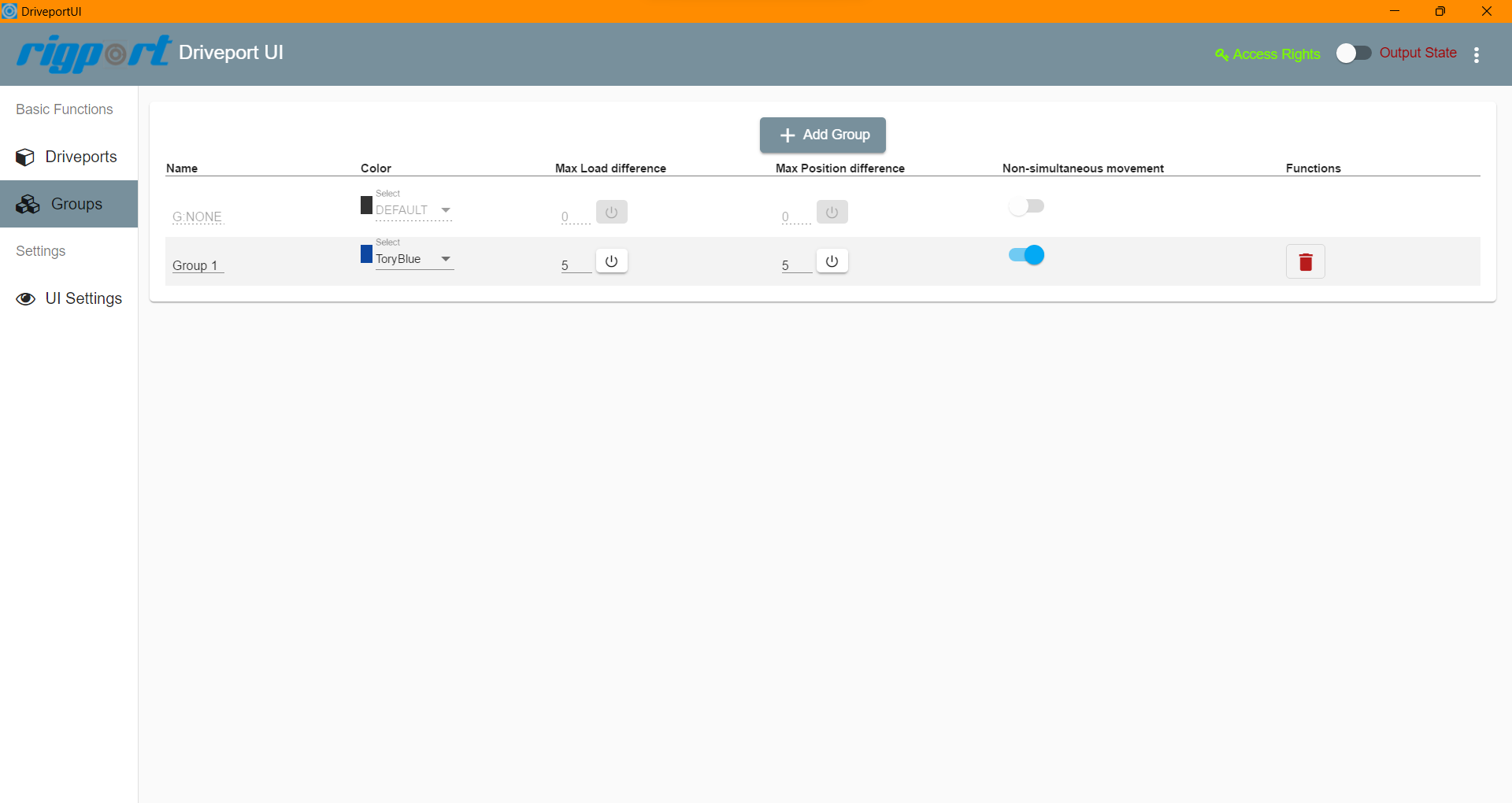

- Group trip management
- Windows or Linux
- MQTT interface for integration into other higher-level systems
Technical data:
| Measurements: | 290x79x40mm |
|---|
