DrivePortNanoRPL32MKII
€645.49
Product information "DrivePortNanoRPL32MKII"

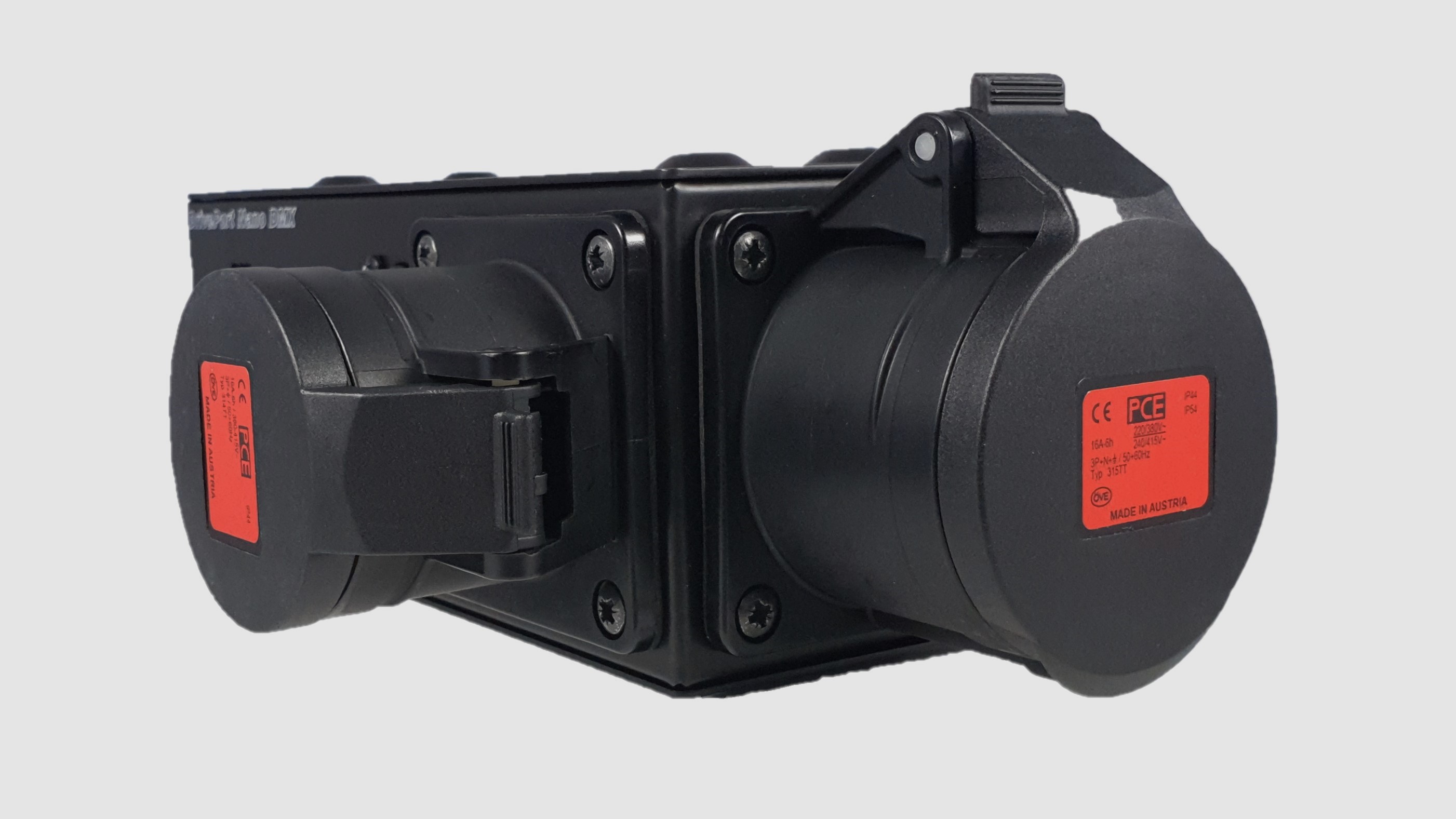

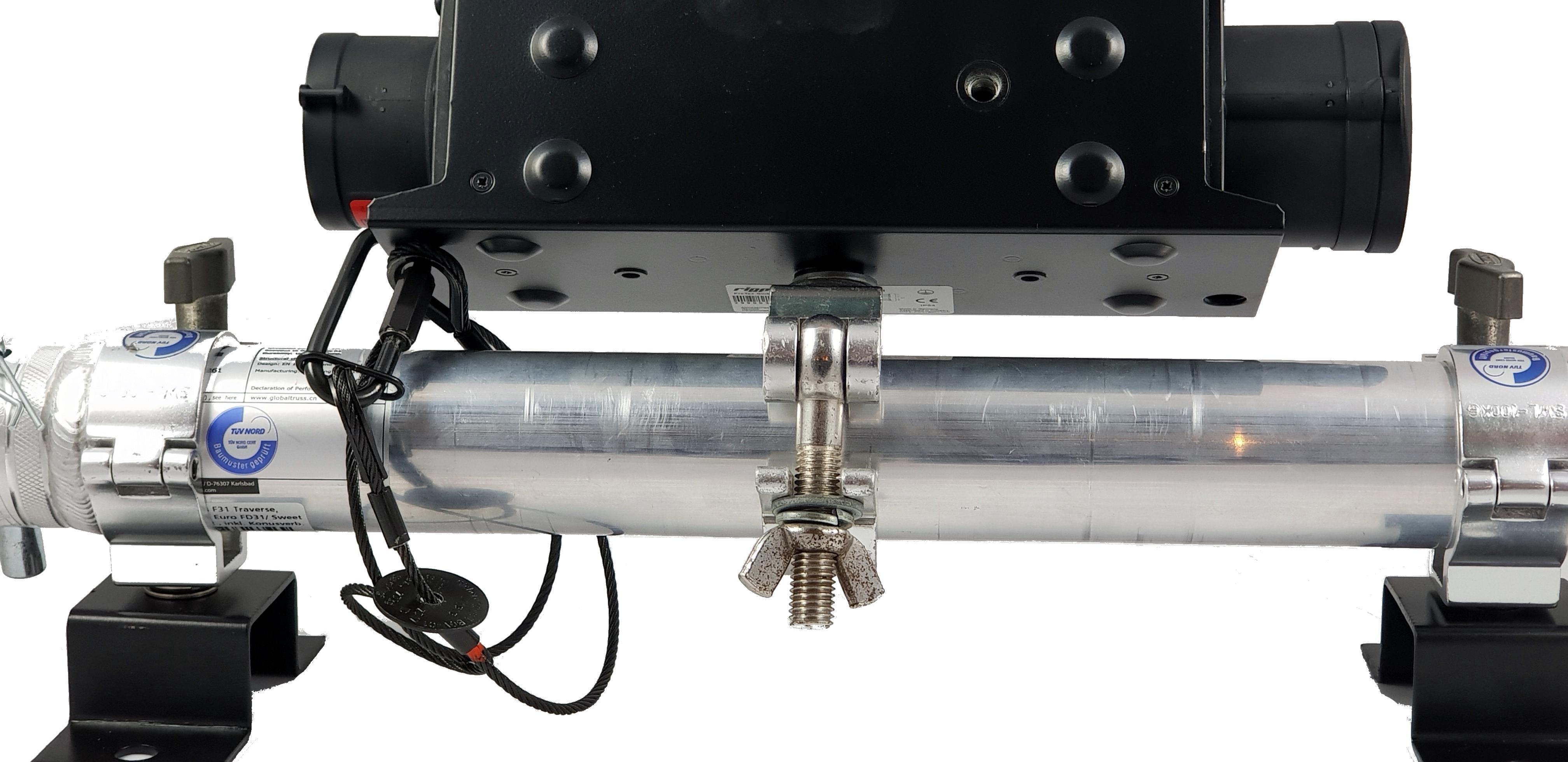

The DrivePortNanoRPL32MK2 (2nd generation) is a smart 1-channel chain hoist control based on DMX/RDM for the traverse directly on the train.
Specific features:
- 1 channel DMX512/RDM motor control
- Housing extremely robust and small
- Safety integrated in the DMX cable (only one cable for DMX and safety)
- Stand-alone or integrated in the RigPort system
- no lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)
- Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDM
- flexible and modular (the system grows with the requirements):
- Can be expanded to include D8 / D8PLUS / C1 chain hoists/motors
- Safety protection and safety bridging included
Connections:
- 1x CEE32-5p-In
- 1x XLR5-in (DMX512)
- 1x CEE16-5p4p-Out (Load)
- 1x XLR5-out (DMX512)
- 1x CEE32-5p-Through Out
Technical data:
| Conductor cross-section: | 4mm² |
|---|---|
| HS Code: | 85359000 |
| Material: | Stahlblech |
| Maximum current: | 32A fused 9A |
| Maximum temperature: | 55°C |
| Measurements: | 300x140x90mm |
| Protection class: | IP20 |
| Weight: | 1,85kg |
