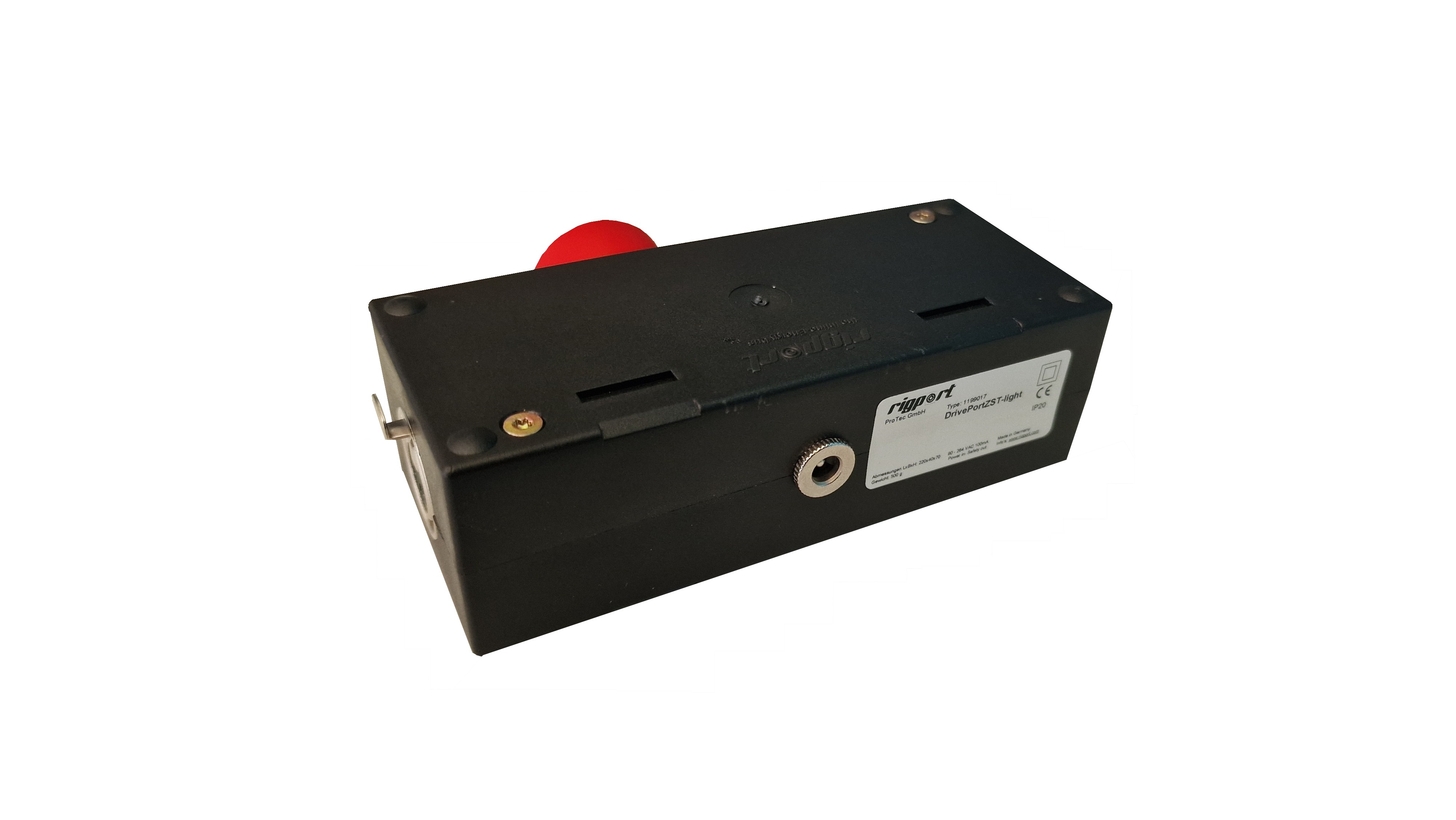

DrivePortZST-light DMX
€264.89
Product information "DrivePortZST-light DMX"
Safety control device in combination with a DMX512 control device to control all DrivePorts via DMX+Safety
Specific features:
- Enabling button with status LED
- NotHalt SIL3
- max 25 DrivePorts simultaneously (depending on the power supply)
- external power supply (24VDC 1Amp)
Connections:
- 1x DMX XLR-3Pol-In (for connection to standard DMX control device/DrivePort Control SW)

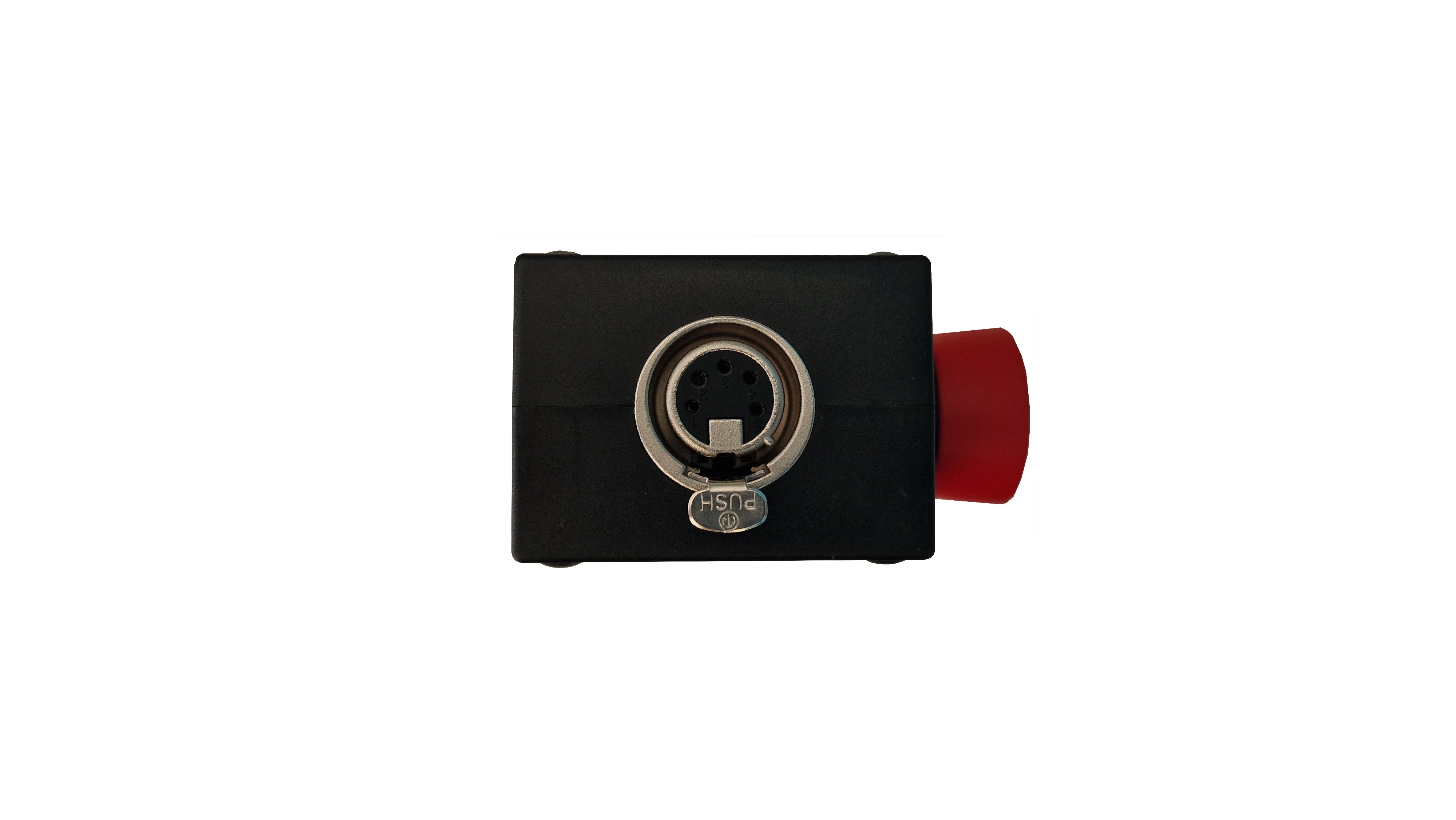

- 1x DMX/Safety Out XLR-5Pol
Technical data:
| HS Code: | 85359000 |
|---|---|
| Material: | Polyamid |
| Maximum temperature: | 55°C |
| Measurements: | 180x130x50mm |
| Protection class: | IP20 |
| Weight: | 0,74kg |
