SpeakPort Budget
Product number:
2199004
Product information "SpeakPort Budget"

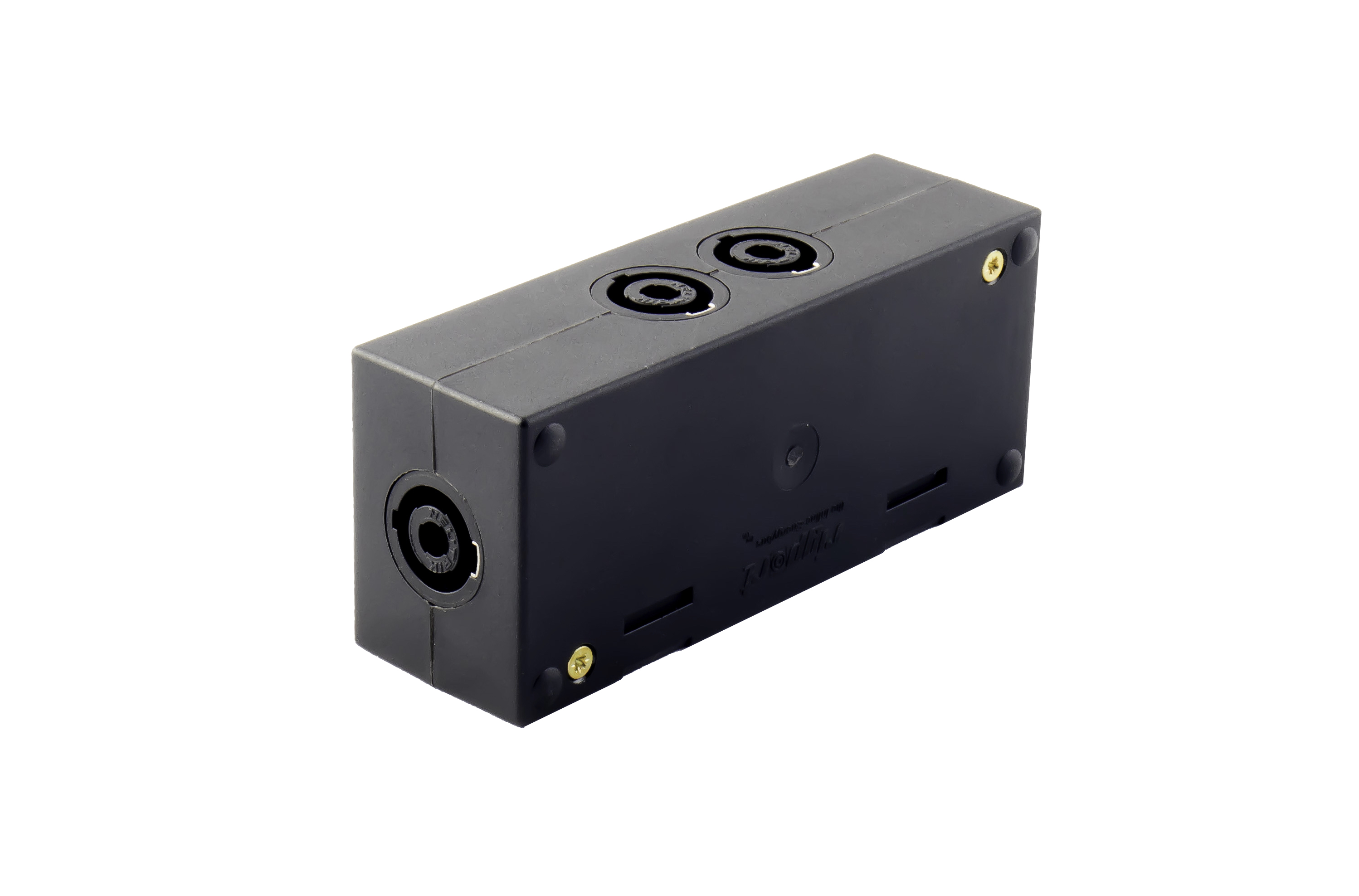

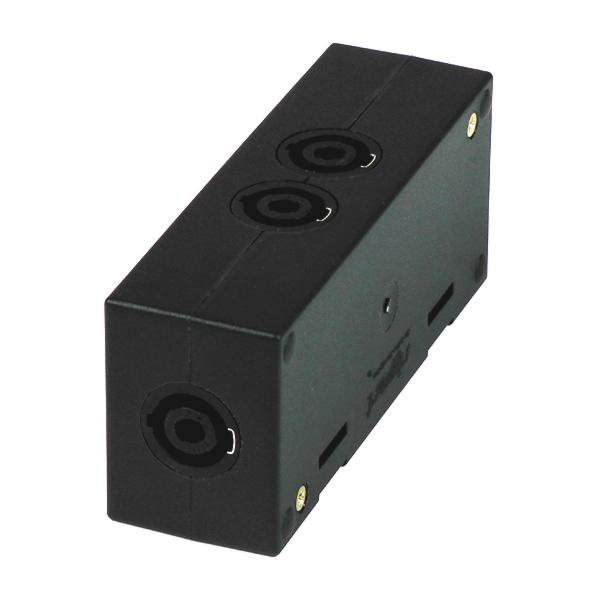

The SpeakPort is a very compact Speakon (NL4) breakout box ideal for extending or distributing many speakers, e.g. in PA applications.
Specific features:
- subtle design, yet small and light
- safe and firm latches
- Dimensionally stable housing made of impact-resistant plastic
- Can be installed quickly and easily using RigPort Clamps (except L1S4 line)
- Can be positioned variably in the traverse
- easy to combine
- RigPort Safety available for secondary backup

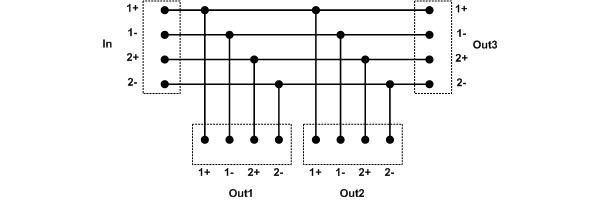

Connections:
- 1x Speakon-In
- 2x Speakon- 1:1 Out
- 1x Speakon-Through Out
Technical data:
| HS Code: | 85369010 |
|---|---|
| Material: | Polyamid |
| Maximum current: | 30A |
| Maximum temperature: | 55°C |
| Measurements: | 132,5x43x56mm |
| Protection class: | IP20 |
| Weight: | 170g |
