The DrivePortNanoRPL16MK2 (2nd generation) is a smart 1-channel chain hoist control based on DMX/RDM for the traverse directly on the train.Specific features:1 channel DMX512/RDM motor controlHousing extremely robust and smallSafety integrated in the DMX cable (only one cable for DMX and safety)Stand-alone or integrated in the RigPort systemno lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDMflexible and modular (the system grows with the requirements):Can be expanded to include D8 / D8PLUS / C1 chain hoists/motorsSafety protection and safety bridging includedConnections: 1x CEE16-5p-In1x XLR5-in (DMX512)1x CEE16-5p4p-Out (Load)1x XLR5-out (DMX512)1x CEE16-5p-Through OutF Technical data:

Messedemo, GebrauchsspurenRigport16CEEBus ist ein fest vorkonfektioniertes System basierend auf dem Rigport16 mit 10m Länge. Hierbei sind 5x Rigport16 mit Zwischensteckverbinder am Anfang und am Ende (HanQ5, abweichend vom Bild)  fest verdrahtet. Start und Ende ist jedoch ein fest verdrahteter CEE16 Kabelstecker/bzw. -Buchse Vorteile sind: - Ein Kabel am Stück - nochmals extreme Preisersparnis ggü. Modularaufbau bis zu 70%! - geringerer Schleifenwiderstand... da geringste Anzahl Steckverbindungen  -noch kürzere Aufbauzeiten

The RigPortL1-T1bus contains five hard-wired RigPortL1-T1s with a length of 10m without intermediate connectors. The start and end is each an integrated Powercon True1 connection.Specific features:Fixed, pre-assembled system based on RigPortRigPort Clamps included for quick installation in the traverseHigh price savings compared to modular construction - up to 70%!Lower loop resistance due to the lowest number of plug connectionsgreatly reduced setup timesCustomer-specific configurations possible , e.g. for pre-equipped 3m trusses in the dolly [ Rigport-1m-Rigport-1m-Rigport-1m-Rigport ]Connections:1x Powercon-T1-In11x Powercon-T1-Out (5x L1)1x Powercon-T1-Through OutTechnical data:

Der RPL32CEE-MKII ist ein 3-Phasen-Stromverteiler mit CEE32 Anschlüssen auf einen seitlichen CEE32 Abgriff. 32A CEE --> 32A CEE BreakoutBox Spezifische Merkmale: CEE Inline kleine wartungsfreie on-Stage Stromverteilungen komplett schwarz für möglichst unauffällige Installation mit RPL-Clamp50 in der Traverse montierbar M10 Schraubaufnahme zur Befestigung von Coupler, Triggerclamps o.ä. 2x M4 Aufnahme outdoor-tauglich Anschlüsse: 1x CEE32-5p-In 1x CEE32-5p-Out 1x CEE32-5p-Through Out Dokumentation: User-Manual Technische Daten:

The CEE16+ is a distributor that allows a CEE16 line to be branched into three additional paths.In combination with the StagePort16 products, power distribution can be quickly achieved, for example on stages.Specific features:CEE Inlinesmall maintenance-free on-stage power distributionscompletely black for the most inconspicuous installation possiblecannot be mounted in the traverse with RPL-Clamp50Connections:1x CEE16-5p-In3x CEE16-5p-OutTechnical data:

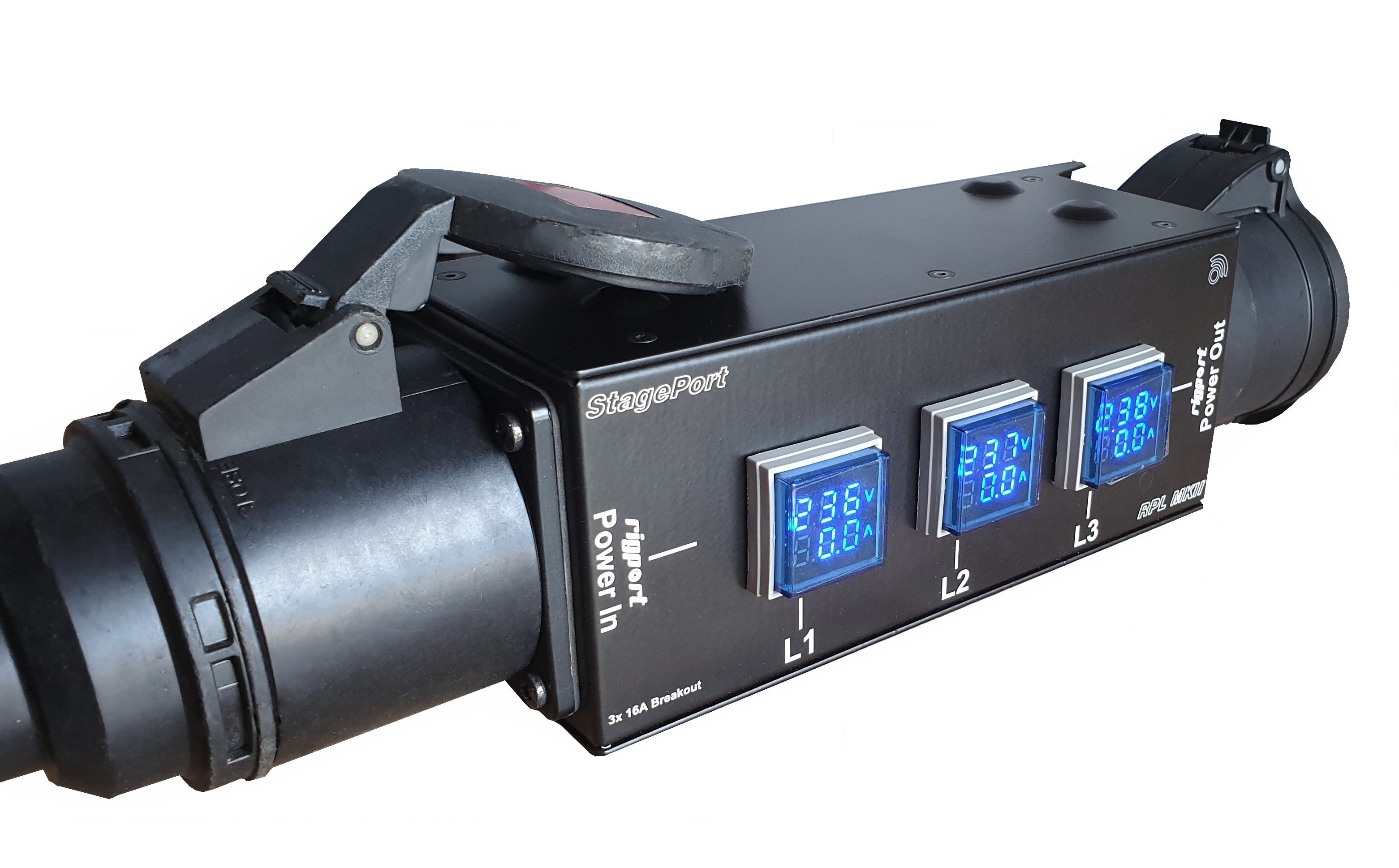

The RPL32WD is an intelligent Wi-Fi power monitor for connection to 3-phase 32 amp supply lines.Voltage/current display for looping into 3-phase supply linesSpecific features:Measurement of all 3x outer conductorsWatchDog function for limit valuesPower measurement on each channelWeb server for monitoring and configurationWiFi, MQTT, Bluetooth...Performance measurement with data storageSmart schedules, scripting, webhooks3x digital display voltmeter ammeter, blue for each phaseVoltage measuring range: 60 V to 500 V, measuring accuracy ‎±1Current measurement: 0 to 100 A, measurement accuracy ±1 Can be mounted quickly and easily with RigPort RPL-Clamps1x M10, 2x M4Shelly Pro 3EMConnections:1x CEE32-5p-In1x CEE32-5p-Through-Out1x EtherconDocumentation:manual Technical data:

RackPortMain1 - Versatile 1U MiniServer for System Monitoring and MoreThe RackPortMain1 is a compact 1U MiniServer, perfect for use as a central unit for Watchdog system monitoring. Featuring a freely configurable Raspberry Pi 5 web server on a Linux basis, it offers countless application possibilities. Use it to display WiFi power monitors, load cells, or any other external applications that respond to threshold exceedances or timers.Thanks to the open operating system and the powerful Raspberry Pi 5, the possibilities are virtually limitless.Key Features:Raspberry Pi 5: Open Linux system as a foundation with pre-installed Docker containersHomeAssistantNode-RedInfluxDBMosquittoExtensive Communication Options: Web server, MQTT, ModBus, HTML, Bluetooth, etc.High Operational Stability: SSD (Solid State Drive) for enhanced stabilityPowerful Hardware:25W power supply via GPIO portInternal 8-port 1Gbit switchVersatile Connectivity:1x Powercon True1 In1x Powercon True1 Out7x Ethernet (6x Front, 1x Rear)3x USB2x HDMI2x Extension ports for custom purposes like DMX or GPIOsTechnical Specifications:ARM Cortex 2.4GHz8GB RAM128GB SSD230VAC, 30WAdditional Resources:Find links to installation scripts and templates here:WatchDog (current, voltage, power, CosPhi…)Load cellsTemperature sensorsWind sensors User-Manual-Rigport-StagePort_de_V0-1User_Manual_WatchDog

PVC cable versionRemaining stocks1.5 mNeutrik
