DimPort32MK2-Han
Product information "DimPort32MK2-Han"

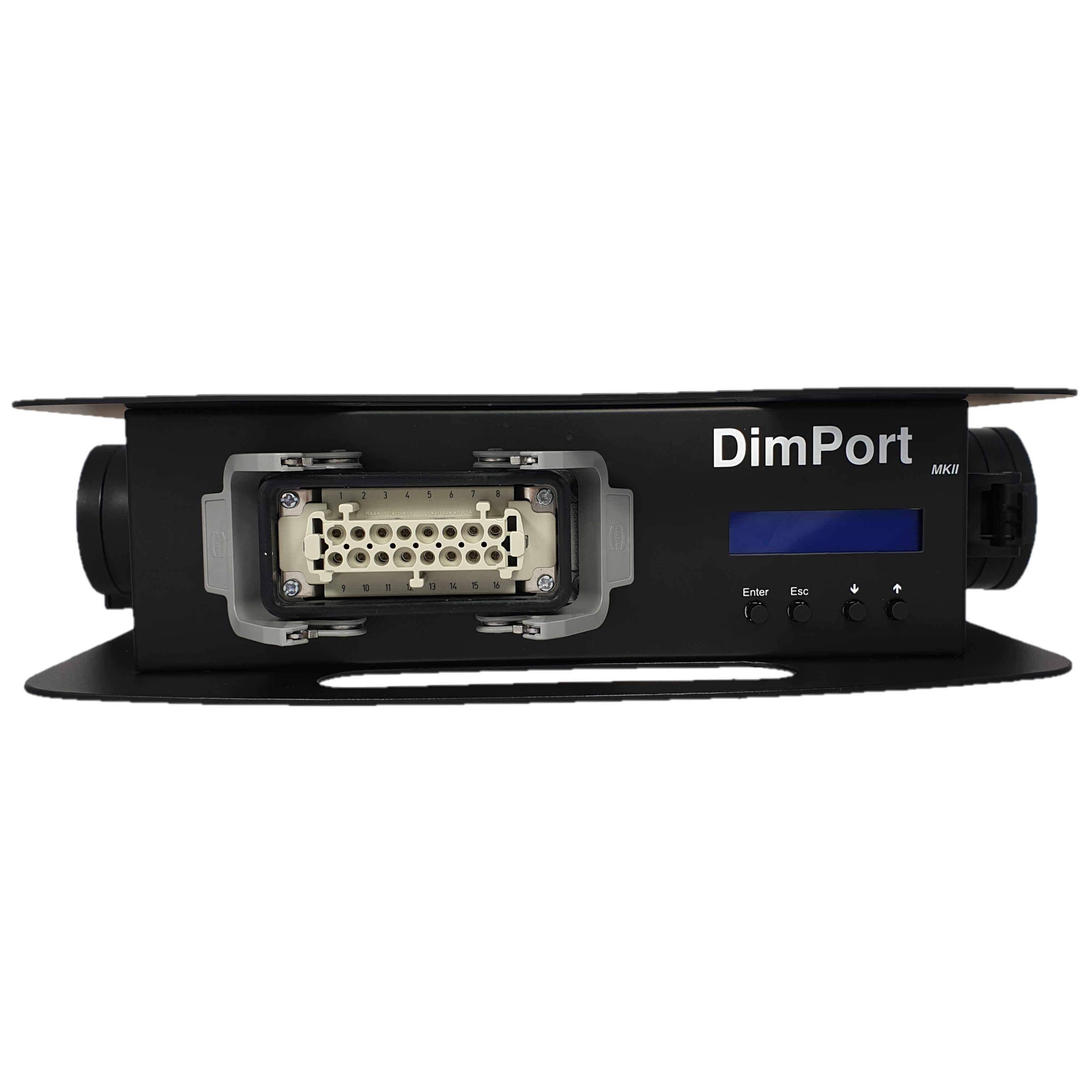

The DimPort32MK2-Han6 (2nd generation) is a smart 6-channel dimmer for the traverse,
directly to the consumer in Han6 version.
Specific features:
- no Lakas and Dimmercities (70% less cable/weight/setup time & personnel, truck space)
- Integrate and address any number of conventional spotlights via DMX512
- 6 channel three-phase dimmer for the traverse
- low hum and scattering
- only short paths with phase control to the consumer
- special filters
- CEE in/out (16A/32) Daisychain
- 6x 10 amps (self-reset fuses, maintenance-free)
- diverse DimKurven / Switchbetrieb
- RDM (Bidirectional Communication): Headless parameterization and operational data transmission
- Soft channel patch for fast channel routing
- Definable behavior in the event of DMX failure
Connections:
- 1x CEE32-5p-In
- 1x XLR5-in (DMX512)
- 6x Powercon-Out (Load)
- 1x XLR5-out (DMX512)
- 1x CEE32-5p-Through Out
Technical data:
| Conductor cross-section: | 6mm² |
|---|---|
| HS Code: | 85359000 |
| Material: | Blech |
| Maximum current: | 32A fused 9A |
| Maximum temperature: | 55°C |
| Measurements: | 388x244x89mm |
| Protection class: | IP20 |
| Weight: | 4,66Kg |
