RPL16-PM
€131.61
Available in 1 day, delivery time 3-5 days
Product information "RPL16-PM"

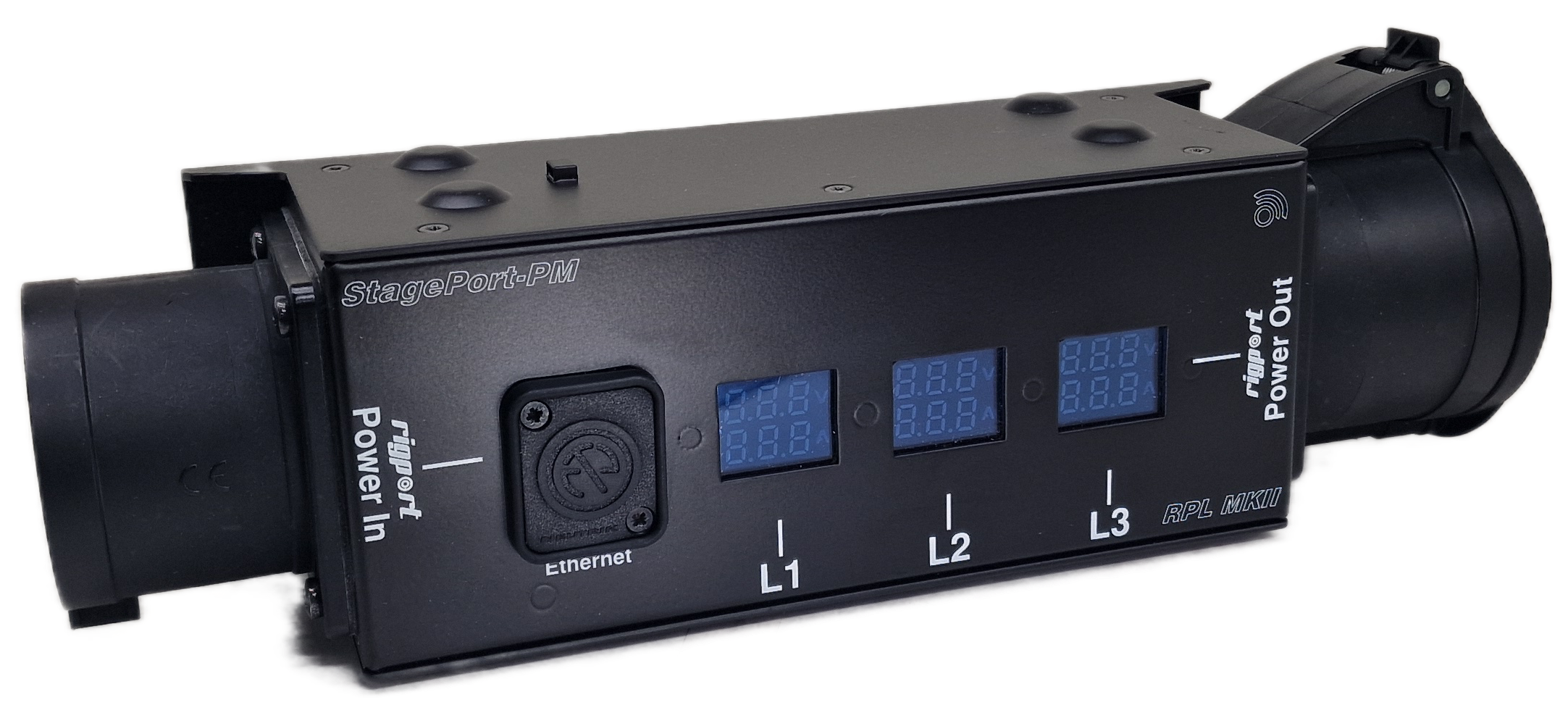

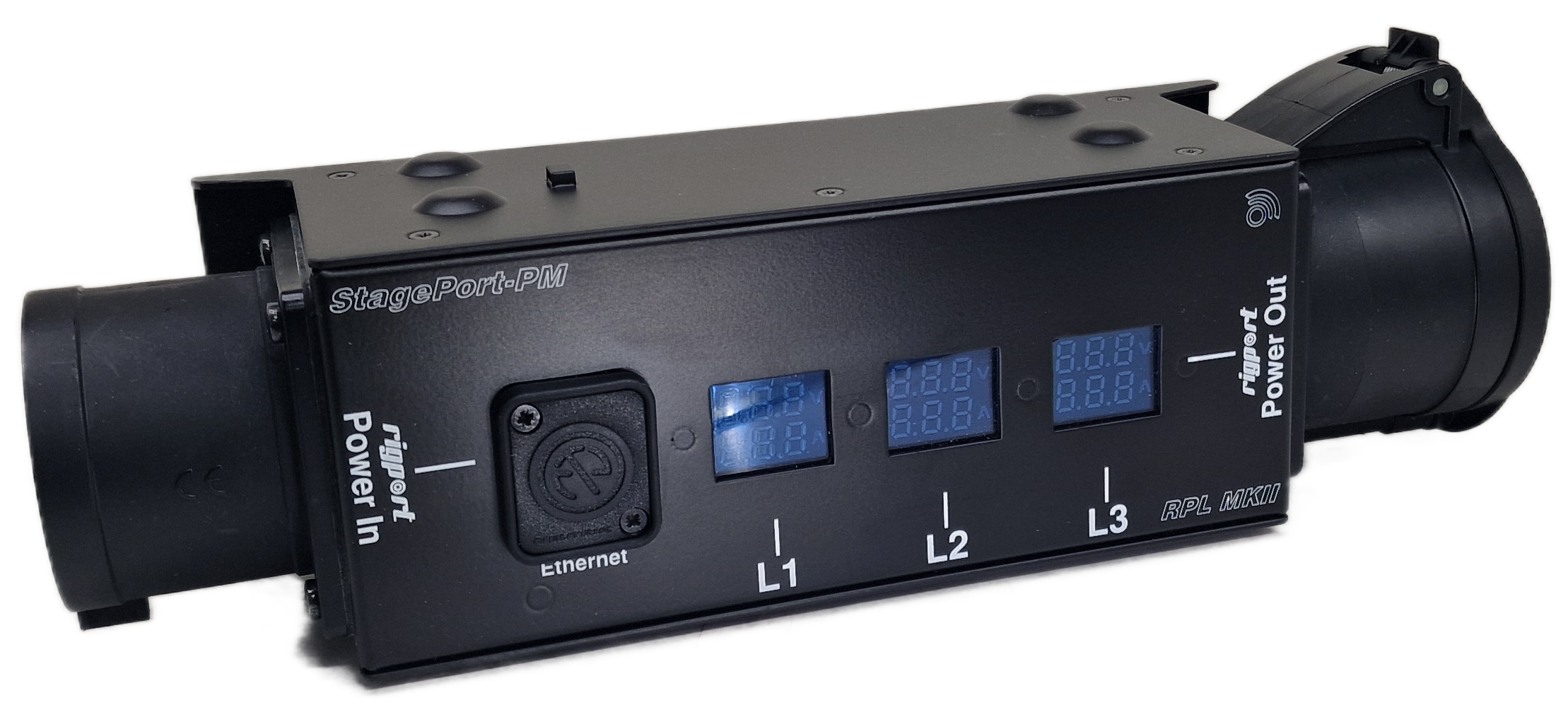

Der RPL16-PM ist ein einfacher Powermonitor.
Spannung/Strom -Anzeige zum Einschleifen in 3-phasige 16A Versorgungsstränge
Spezifische Merkmale:

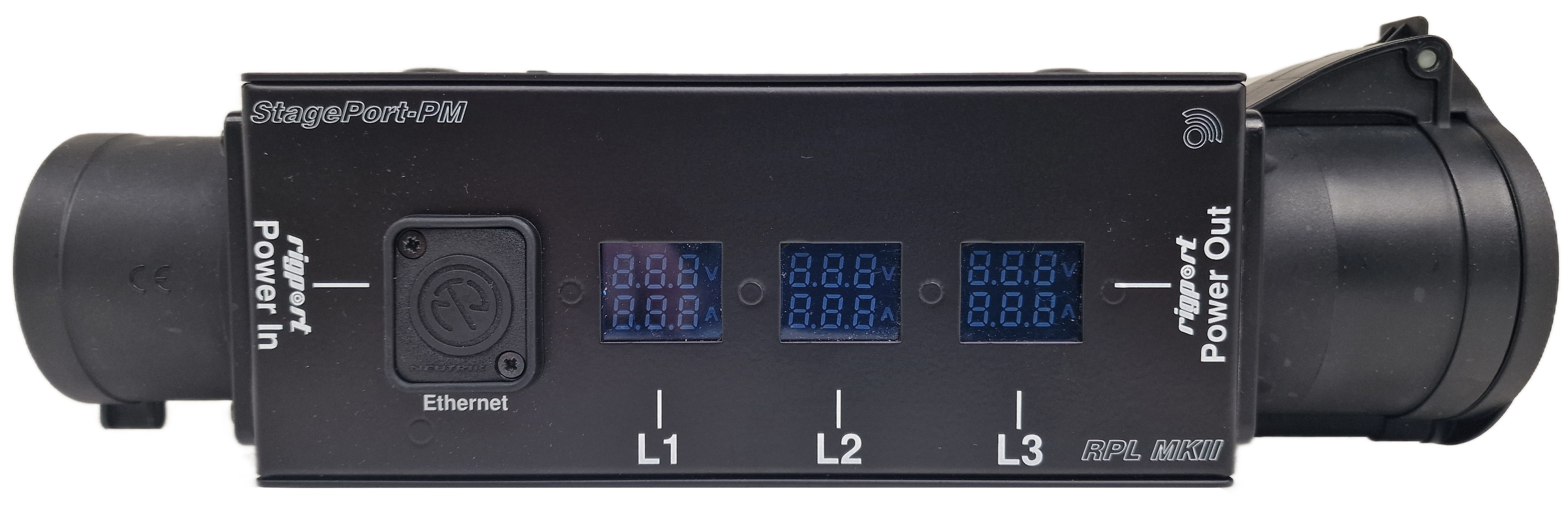

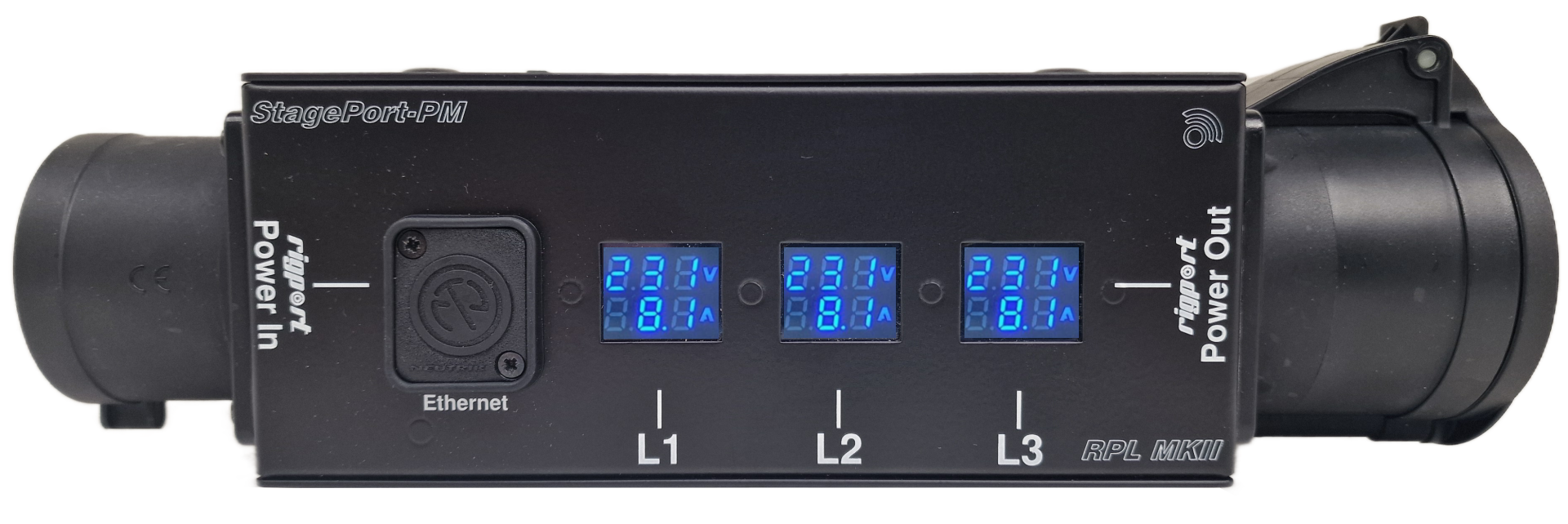

- Digitalanzeige Voltmeter Amperemeter, blau
- Spannungsmessbereich: 60 V bis 500 V, Messgenauigkeit ±1
- Strommessung: 0 bis 100 A, Messgenauigkeit ±1
- CEE Inline
- kleine wartungsfreie on-Stage Stromverteilungen
- komplett schwarz für möglichst unauffällige Installation
- mit RPL-Clamp50 in der Traverse montierbar
- 1x M10, 2x M4
- outdoor-tauglich
Anschlüsse:

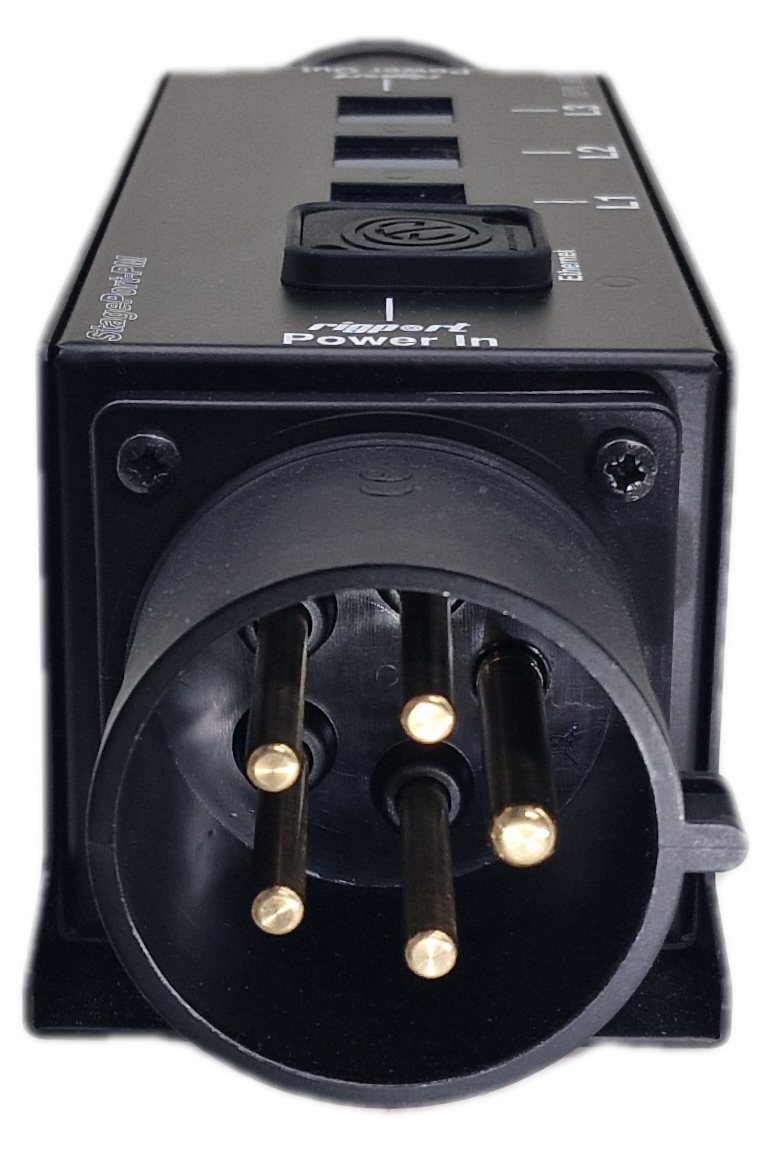

- 1x CEE16-5p-In

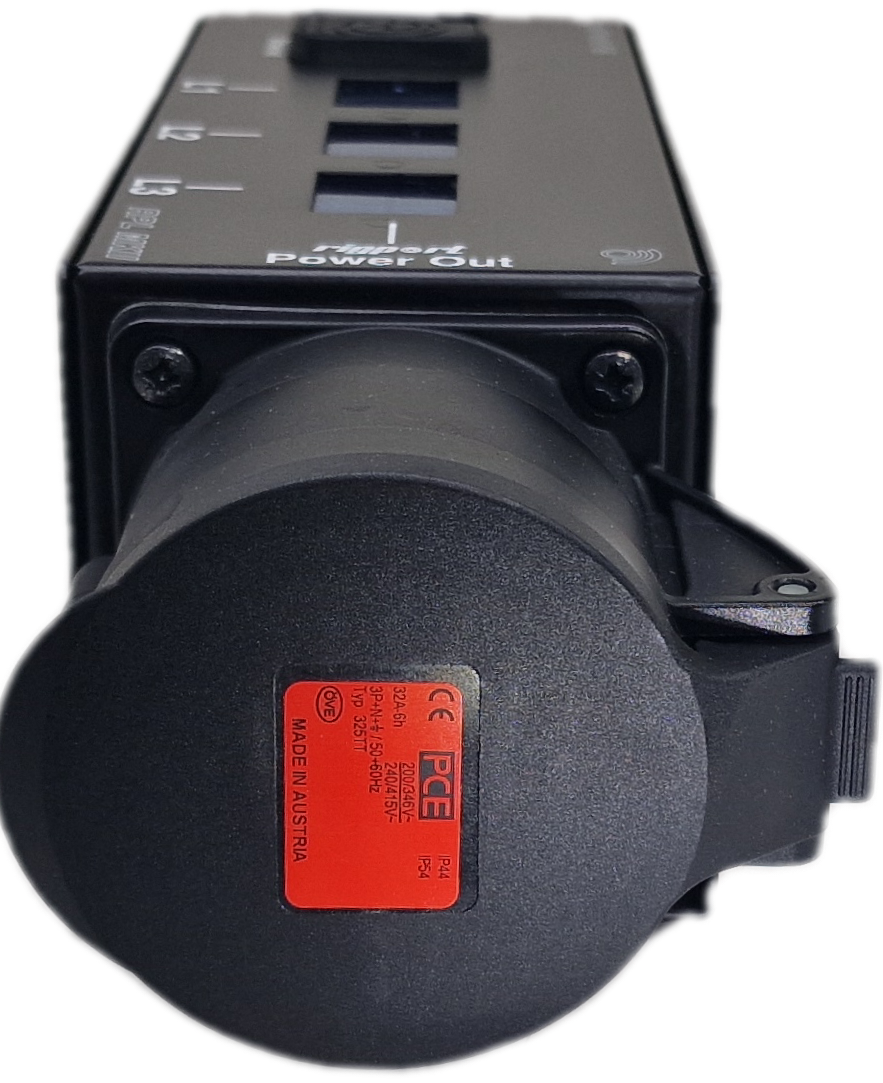

- 1x CEE16-5p-Through Out
Dokumentation:
Technische Daten:
| Conductor cross-section: | 2,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Stahlblech |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 300x90x95mm |
| Protection class: | IP54 |
| Weight: | 1,5Kg |
