RigPort8x
€181.59
Available, delivery time: 3-5 days
Product information "RigPort8x"

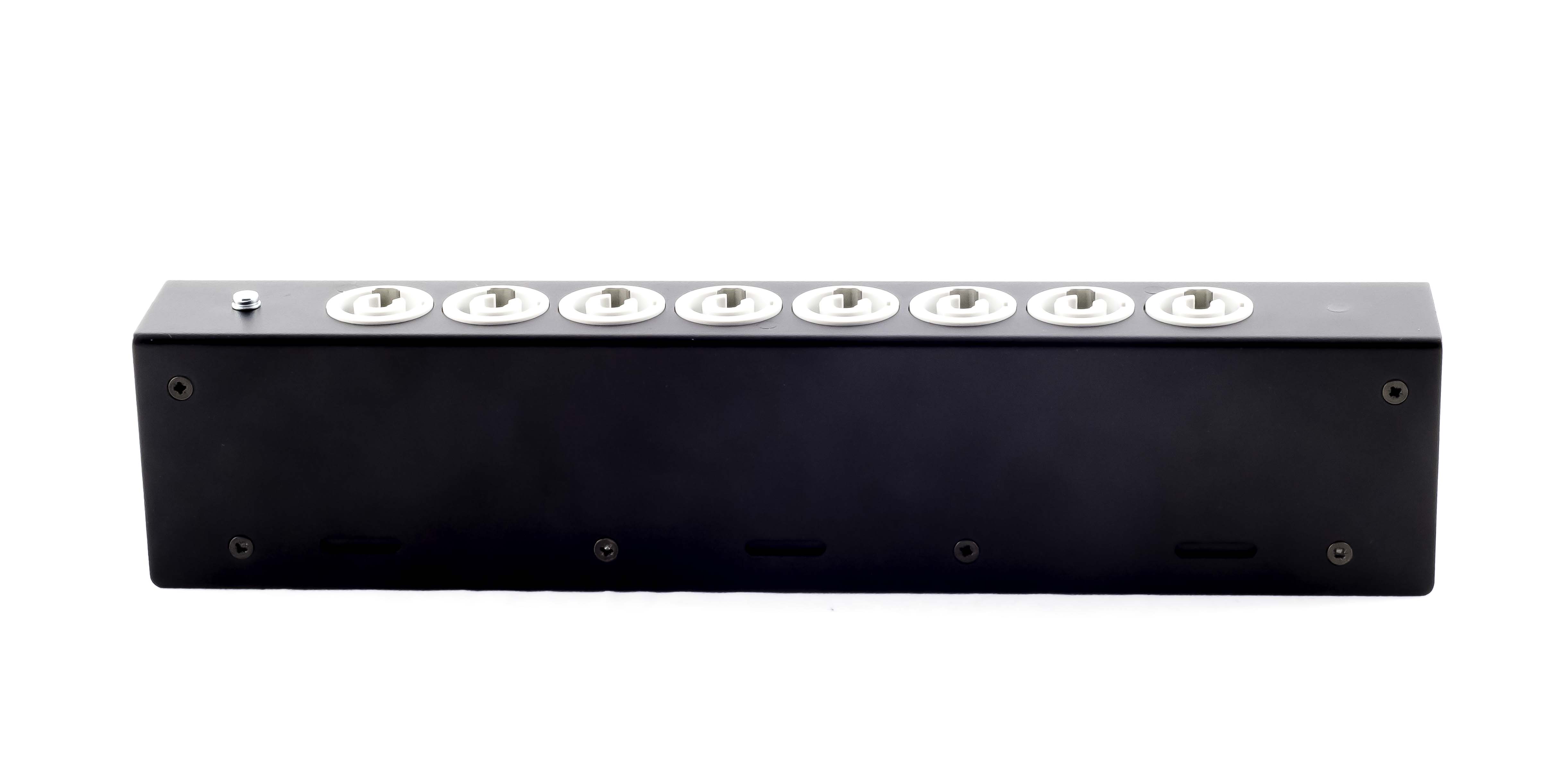

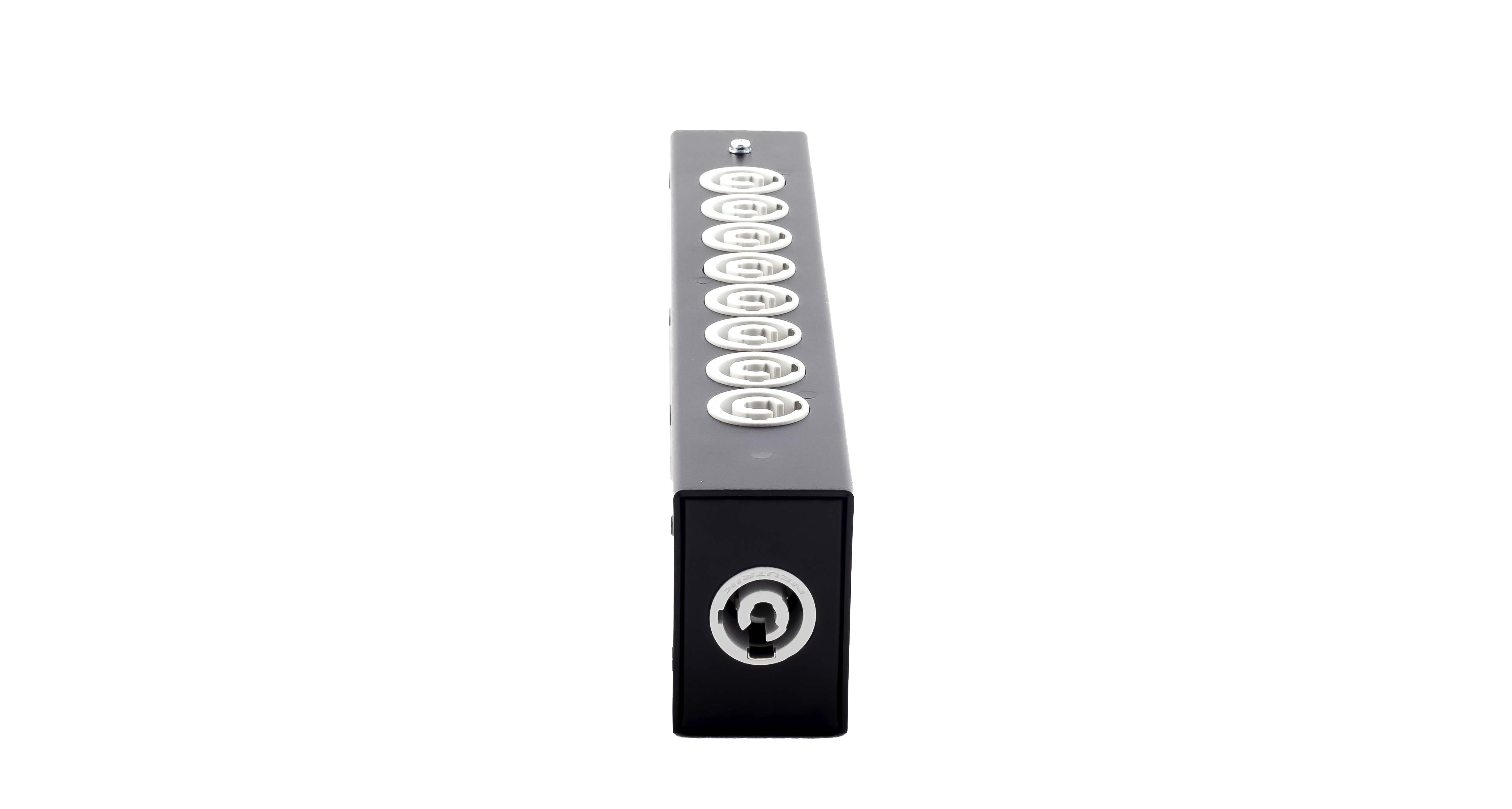

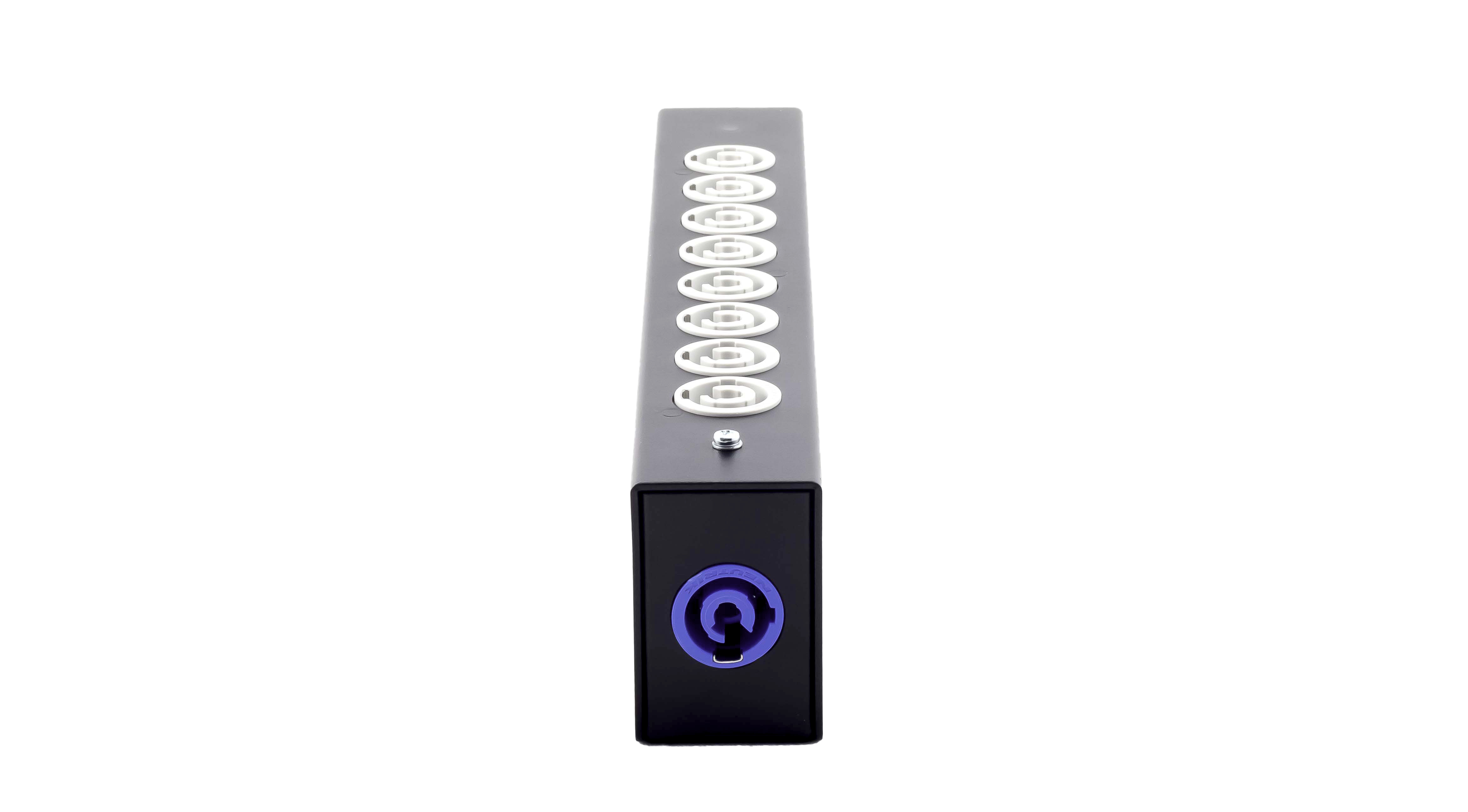

The Rigport8x is an 8-way Powercon distributor suitable as a central star distribution for many devices in a nearby area.
Specific features:
- subtle design
- very stable metal housing
- safe and firm latches
- Can be positioned variably in the traverse

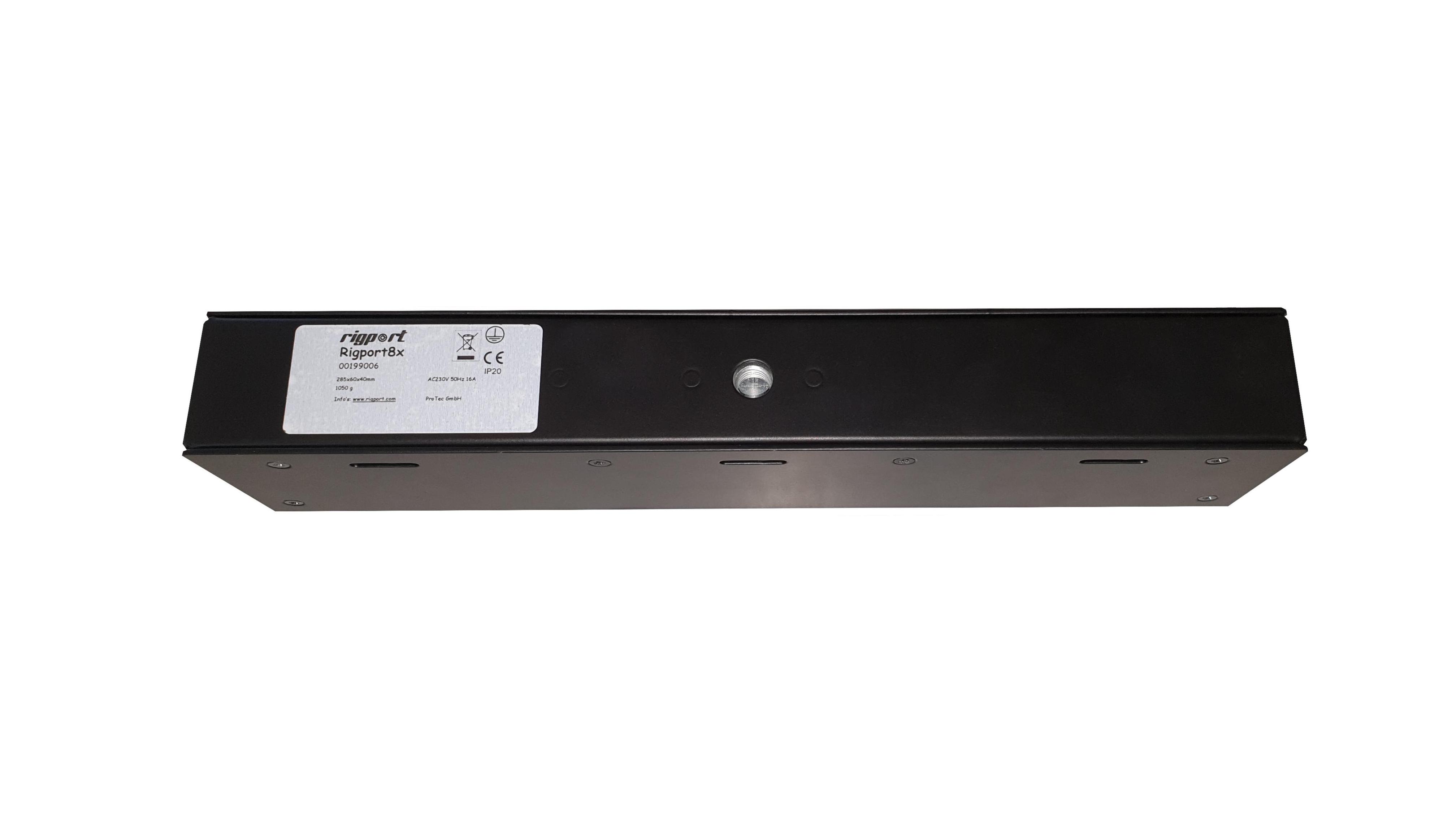

- M10 screw mount for attaching couplers, trigger clamps or similar.
- enables fast cabling
- easy to combine
- RigPort Safety available for secondary backup
Connections:
- 1x Powercon-In
- 8x Powercon-Out
- 1x Powercon-Through Out
Technical data:
| Conductor cross-section: | 2,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Stahlblech |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 287,5x40,5x61,6mm |
| Protection class: | IP20 |
| Weight: | 1,06kg |
