RPL32-16CEE-MKII
€141.61
Available, delivery time: 3-5 days

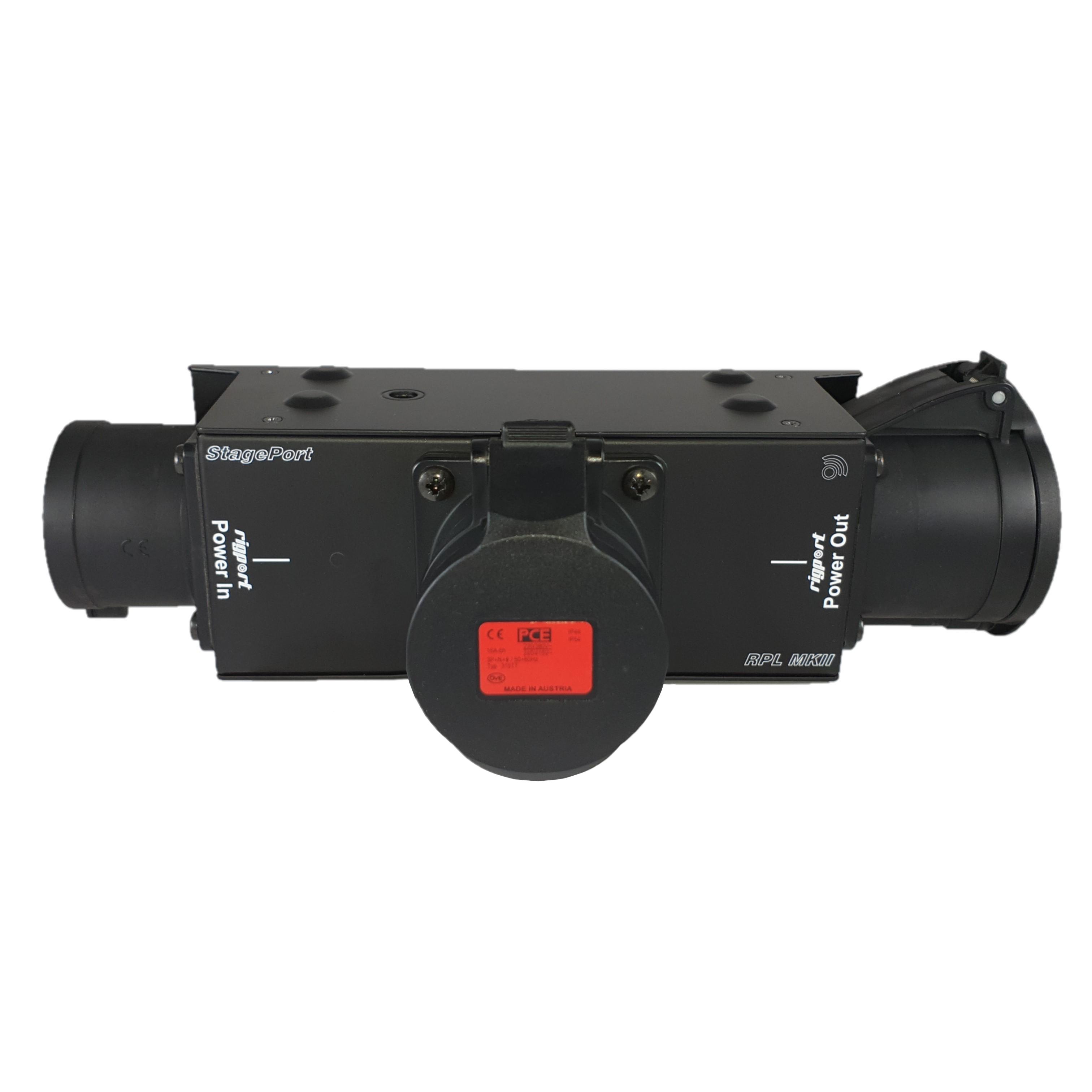

Product information "RPL32-16CEE-MKII"
Der RPL32-16CEE-MKII ist ein 3-Phasen-Stromverteiler mit CEE32 Anschlüssen auf einen seitlichen CEE16 Abgriff mit selbstrückstellender 16A Sicherung.
32A CEE --> 16A CEE BreakoutBox
Spezifische Merkmale:
- CEE Inline
- kleine wartungsfreie on-Stage Stromverteilungen
- komplett schwarz für möglichst unauffällige Installation

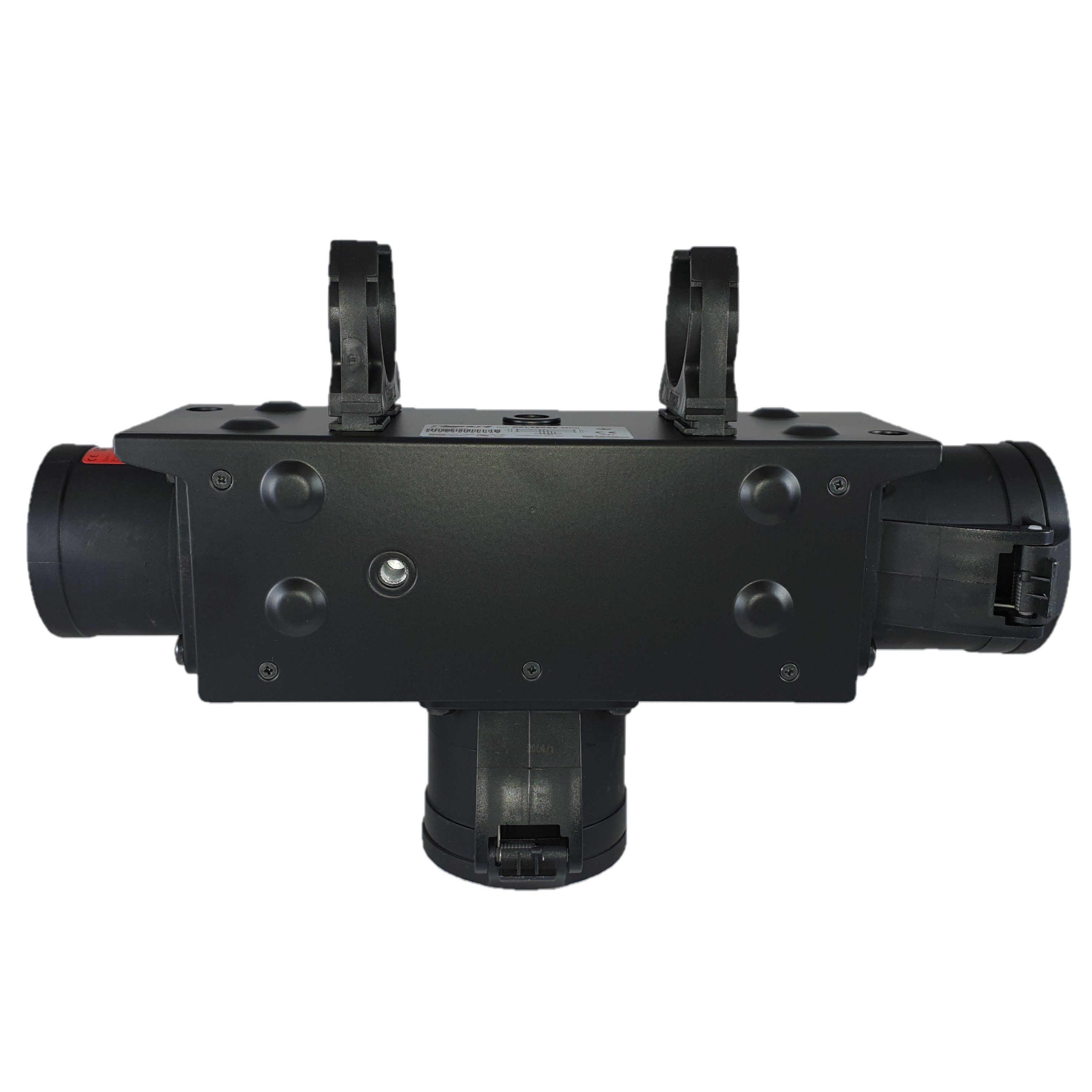

- mit RPL-Clamp50 in der Traverse montierbar
- M10 Schraubaufnahme zur Befestigung von Coupler, Triggerclamps o.ä.
- 2x M4 Aufnahme
- outdoor-tauglich
Anschlüsse:

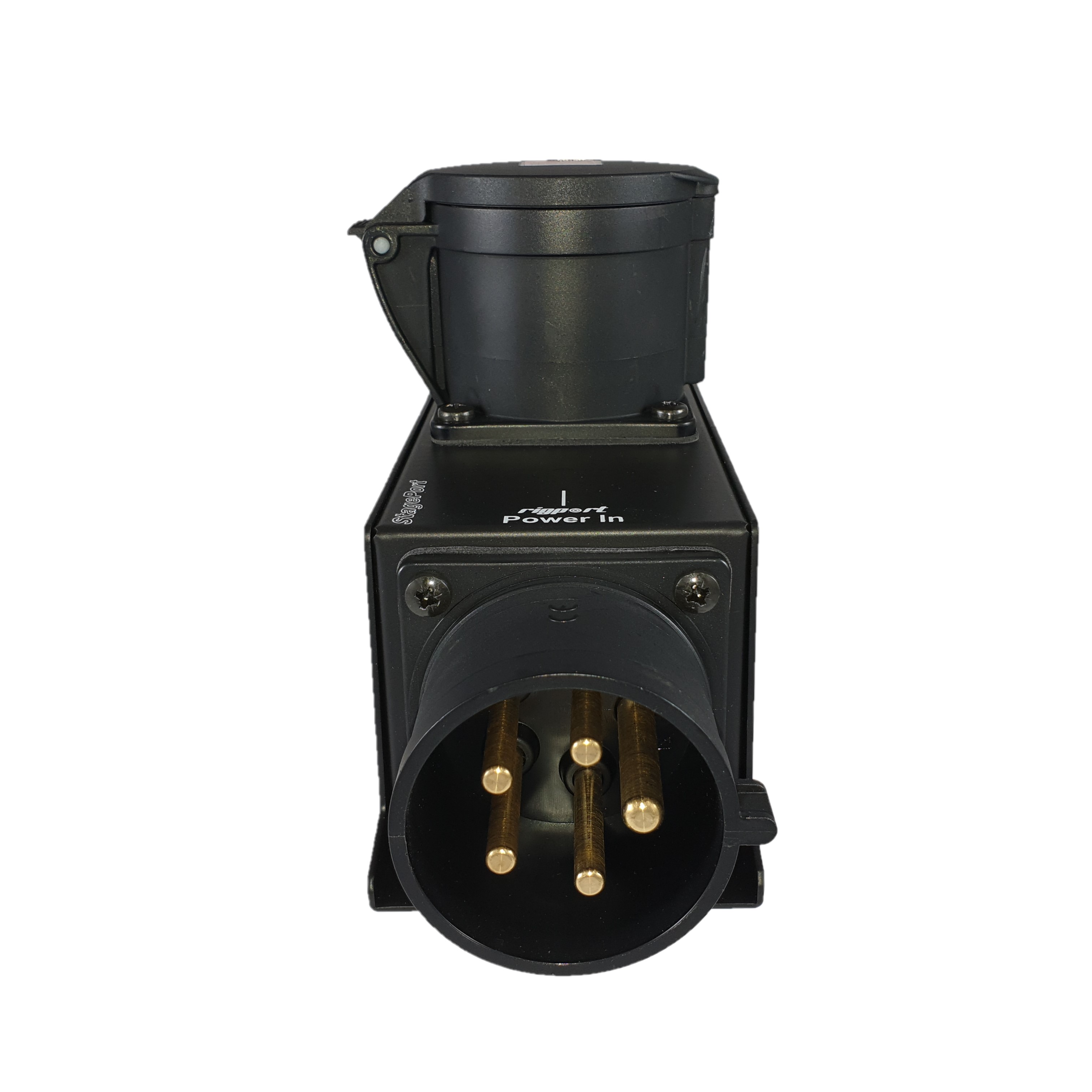

- 1x CEE32-5p-In

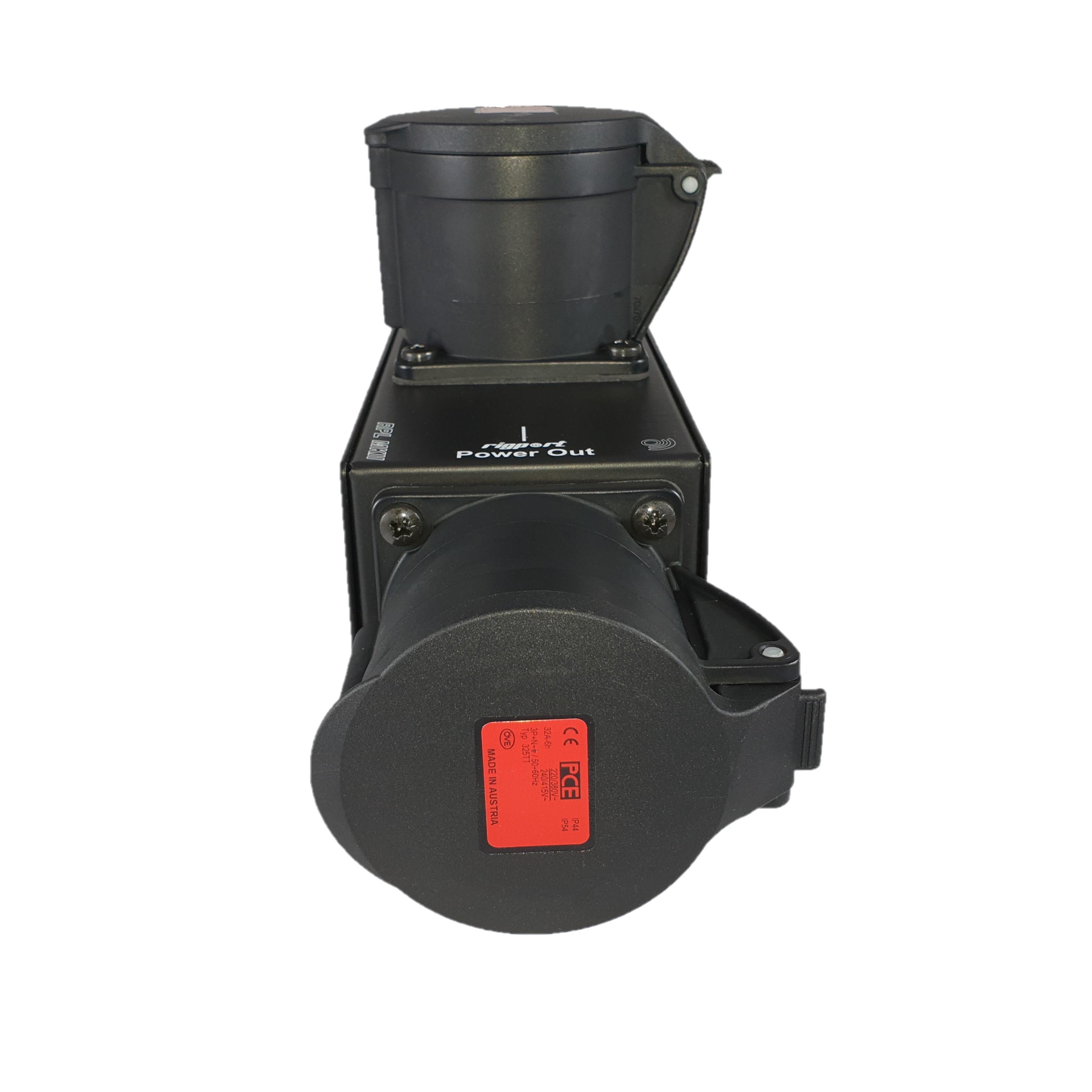

- 1x CEE16-5p-Out
- 1x CEE32-5p-Through Out
Dokumentation:
Technische Daten:
| Conductor cross-section: | 6mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Stahlblech |
| Maximum current: | 16A, 32A |
| Maximum temperature: | 55°C |
| Measurements: | 321x145x100mm |
| Protection class: | IP54 |
| Weight: | 1,8kg |
