RigPortL1-T1-Mix
€64.97
Available, delivery time: 3-5 days
Product information "RigPortL1-T1-Mix"
The RigPortL1-T1-2xPC is an adapter breakout box with PowerconTrue1 bus and 2x Powertcon breakout.
Specific features:
- Adapter Powercon Bus and 2x PowerconT1
- subtle design, yet small and light
- safe and firm latches
- Dimensionally stable housing made of impact-resistant plastic
- Can be installed quickly and easily using RigPort Clamps (except L1S4 line)
- Can be positioned variably in the traverse
- easy to combine
- RigPort Safety available for secondary backup

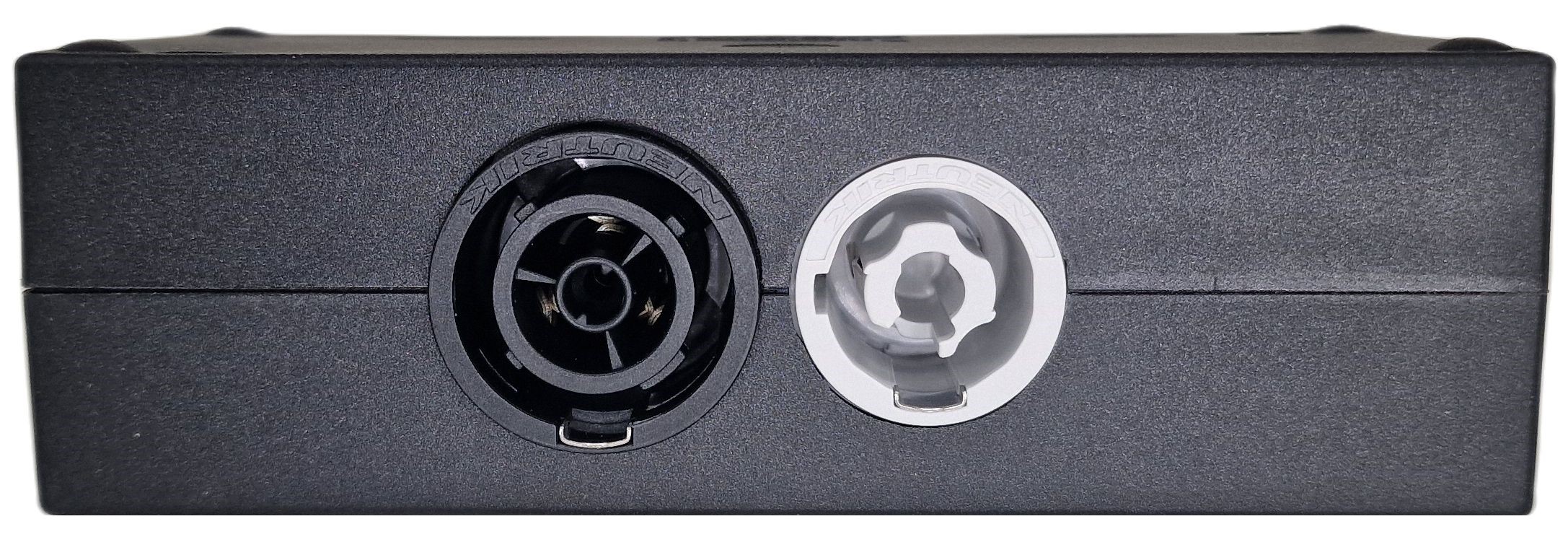

Connections:
- 1x PowerconT1-In
- 2x Powercon out
- 1x PowerconT1 through out
Technical data:
| Conductor cross-section: | 2,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Polyamid |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 132,5x43x56mm |
| Protection class: | IP20 |
| Weight: | 170g |
