RigPortL1
€19.64
Available, delivery time: 1-2 weeks

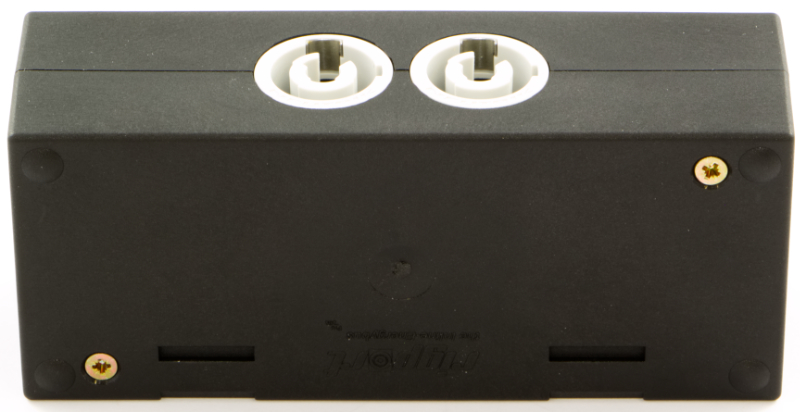

Product information "RigPortL1"
Specific features:
- subtle design, yet small and light
- safe and firm latches
- Dimensionally stable housing made of impact-resistant plastic
- Can be installed quickly and easily using RigPort Clamps (except L1S4 line)
- Can be positioned variably in the traverse
- easy to combine
- RigPort Safety available for secondary backup
Connections:
- 1x Powercon In
- 2x Powercon out
- 1x Powercon through out
Technical data:
| Conductor cross-section: | 2,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Polyamid |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 132,5x43x56mm |
| Protection class: | IP20 |
| Weight: | 170g |
Login
Accessory Items
The RigPort Clamp is a truss clamp (50mm) for quick fixation of the RigPort line. Two clamps are required per port.Attention: this is not a lifting device, which is why a secondary safety device may be required!not compatible with L1S4 line Technical data:
Adapter, 1m, NAC3FCB-Schuko 2.5mm²Specific features:Neutrik Powercon, PCETitanex cableCable VelcroConnections: 1x Powercon-In (m/wh)1x Schuko-Out (f)Technical data:
The RigPortSafety is a safety rope to secure the RigPorts.Specific features:protects up to 2kg600x1.5mmsilverConnections:1x Thimble / 1x Adapter RigPortTechnical data:
Adapter, 1m, NAC3FCB-IEC C15, 1,5mm²Specific features:Neutrik Powercon, PCETitanex cableCable VelcroConnections: 1x Powercon-In (m/wh)1x IEC C60350 C15(A)-Out (f)Technical data:
Accessory Items
The Rigport8x is an 8-way Powercon distributor suitable as a central star distribution for many devices in a nearby area.Specific features:subtle designvery stable metal housingsafe and firm latchesCan be positioned variably in the traverseM10 screw mount for attaching couplers, trigger clamps or similar.enables fast cablingeasy to combineRigPort Safety available for secondary backupConnections:1x Powercon-In8x Powercon-Out1x Powercon-Through OutTechnical data:
The RigPortL1bus contains five hard-wired RigPortL1 with a length of 10m without intermediate connectors. The start and end is an integrated Powercon connection.Specific features:Fixed, pre-assembled system based on RigPortRigPort Clamps included for quick installation in the traverseHigh price savings compared to modular construction - up to 70%!Lower loop resistance due to the lowest number of plug connectionsgreatly reduced setup timesCustomer-specific configurations possibleConnections:1x Powercon-In11x Powercon-Out (5x L1)1x Powercon(white)-Through OutTechnical data:
The RigPort16CEEbus contains five hard-wired RigPort16 with a length of 12m (1m+4x2.5m+1m) without intermediate connectors. The start and end is an integrated CEE16 cable plug/-socketSpecific features:Fixed, pre-assembled system based on RigPortRigPort Clamps included for quick installation in the traverseHigh price savings compared to modular construction - up to 70%!Lower loop resistance due to the lowest number of plug connectionsgreatly reduced setup timesCustomer-specific configurations possible , e.g. for pre-equipped 3m trusses in the dolly [ CEE-0.5m-Rigport-1m-Rigport-1m-Rigport-0.5m-CEE ]Connections:1x CEE16-5p-In15x Powercon-Out (5x Rigport16)1x CEE16-5p-Through OutTechnical data:
The RigPort16T1CEEbus contains five hard-wired RigPort16T1 with a length of 12m (1m+4x2.5m+1m) without intermediate connectors. The start and end is an integrated CEE16 cable plug/-socketSpecific features:Fixed, pre-assembled system based on RigPortRigPort Clamps included for quick installation in the traverseHigh price savings compared to modular construction - up to 70%!Lower loop resistance due to the lowest number of plug connectionsgreatly reduced setup timesCustomer-specific configurations possible , e.g. for pre-equipped 3m trusses in the dolly [ CEE-0.5m-Rigport-1m-Rigport-1m-Rigport-0.5m-CEE ]Connections:1x CEE16-5p-In15x Powercon-T1-Out (5x Rigport16)1x CEE16-5p-Through OutTechnical data:
