RigPortL1
€19.64
Available, delivery time: 1-3 days

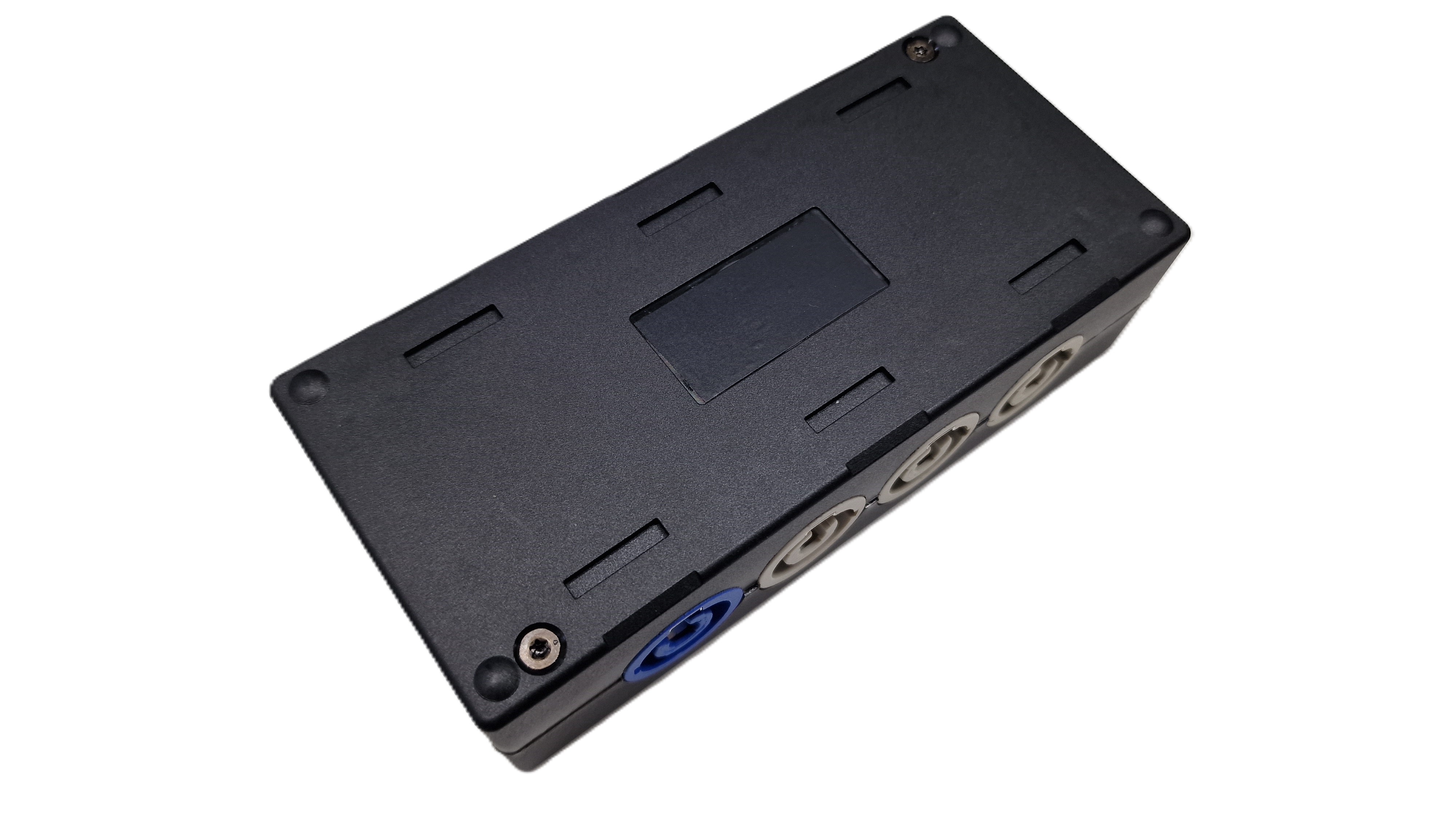

Product information "RigPortL1"
Specific features:
- subtle design, yet small and light
- safe and firm latches
- Dimensionally stable housing made of impact-resistant plastic
- Can be installed quickly and easily using RigPort Clamps (except L1S4 line)
- Can be positioned variably in the truss
- easy to combine
- RigPort Safety available for secondary backup
Connections:
- 1x Powercon In
- 3x Powercon out
- 1x power indicator LED
Technical data:
| Conductor cross-section: | 2,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Polyamid |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 132,5x43x56mm |
| Protection class: | IP20 |
| Weight: | 170g |
