RigPortL1T1-PM-WD
€91.63
Available, delivery time: 3-5 days
Product information "RigPortL1T1-PM-WD"

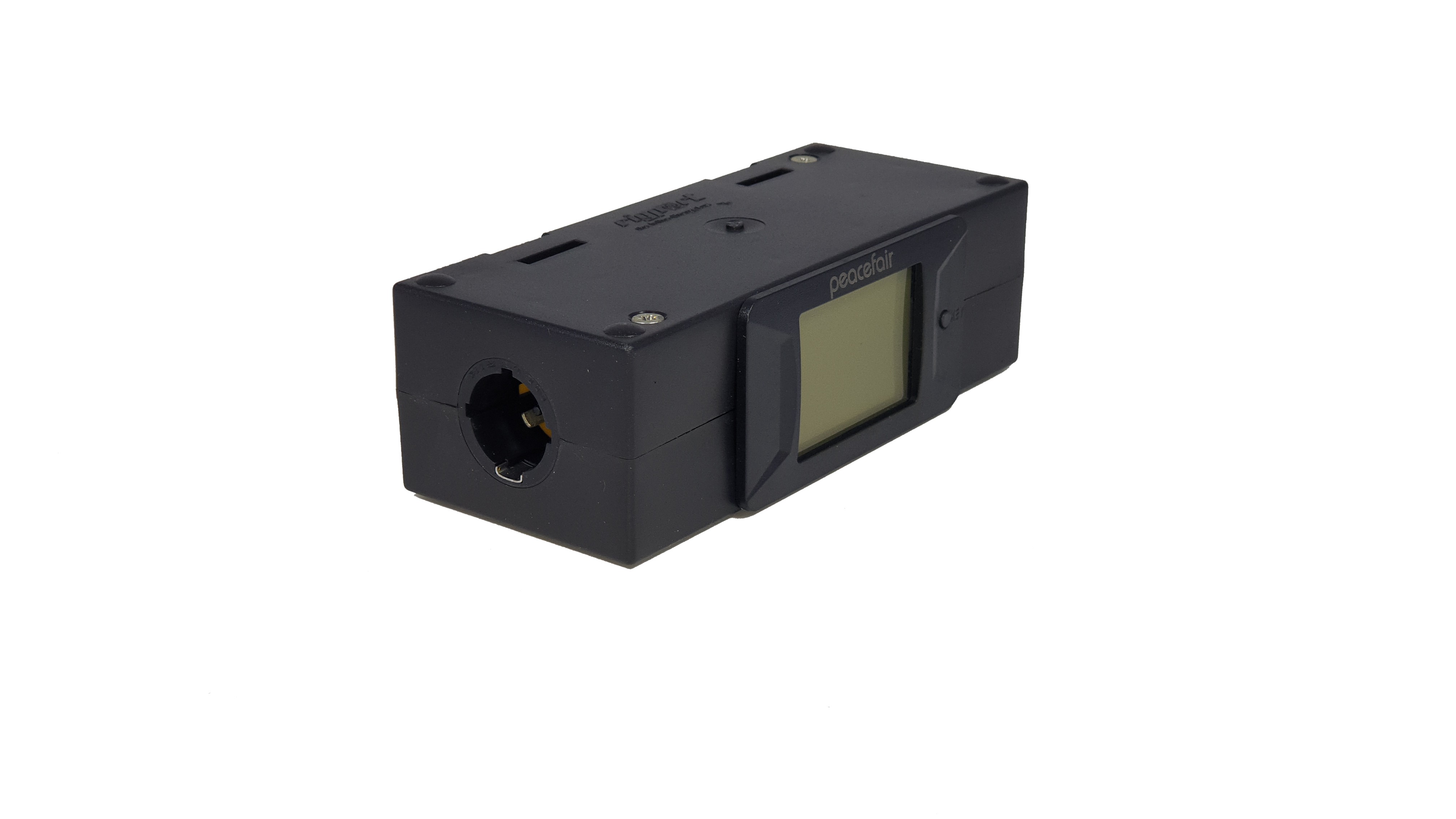

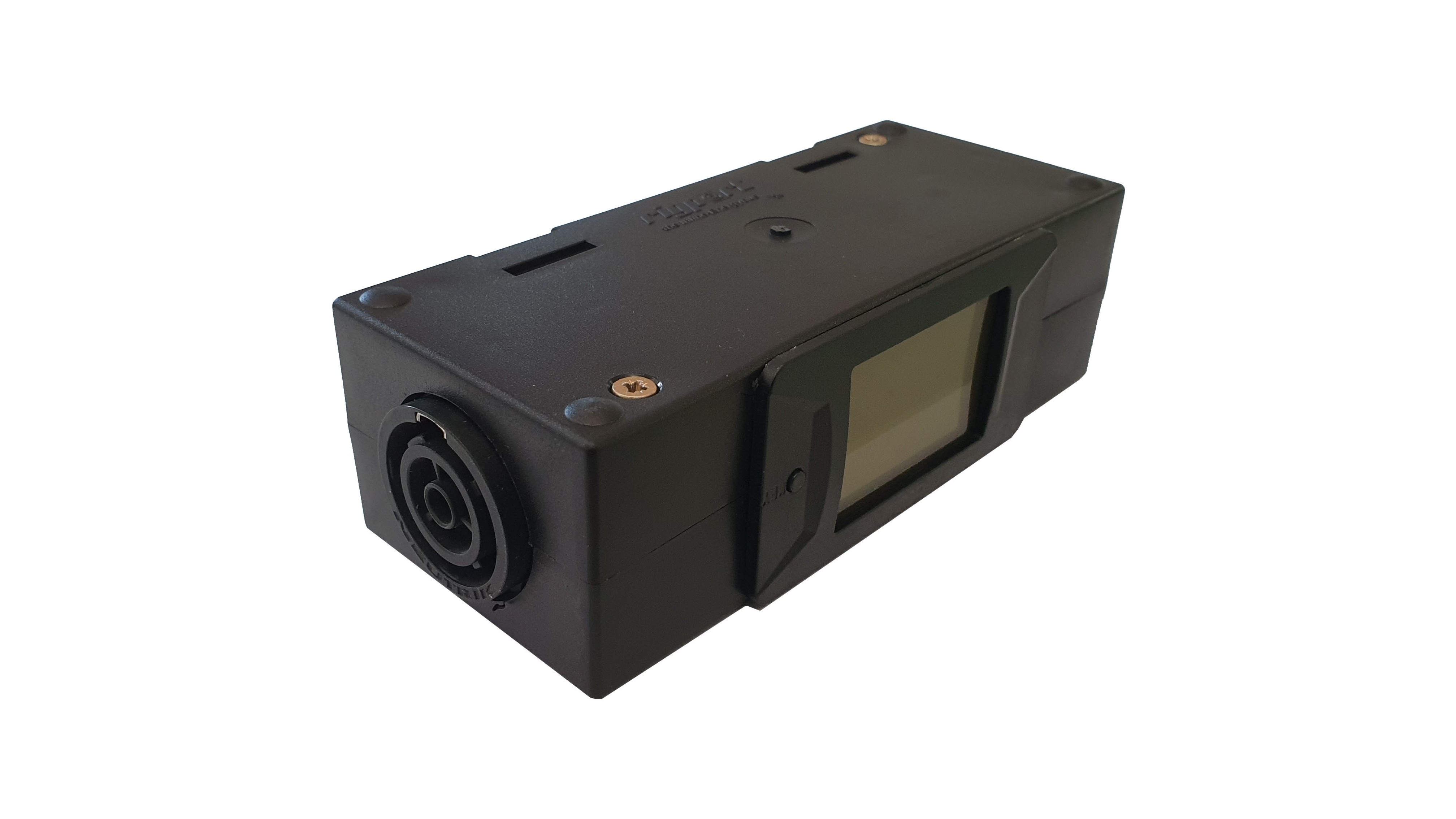

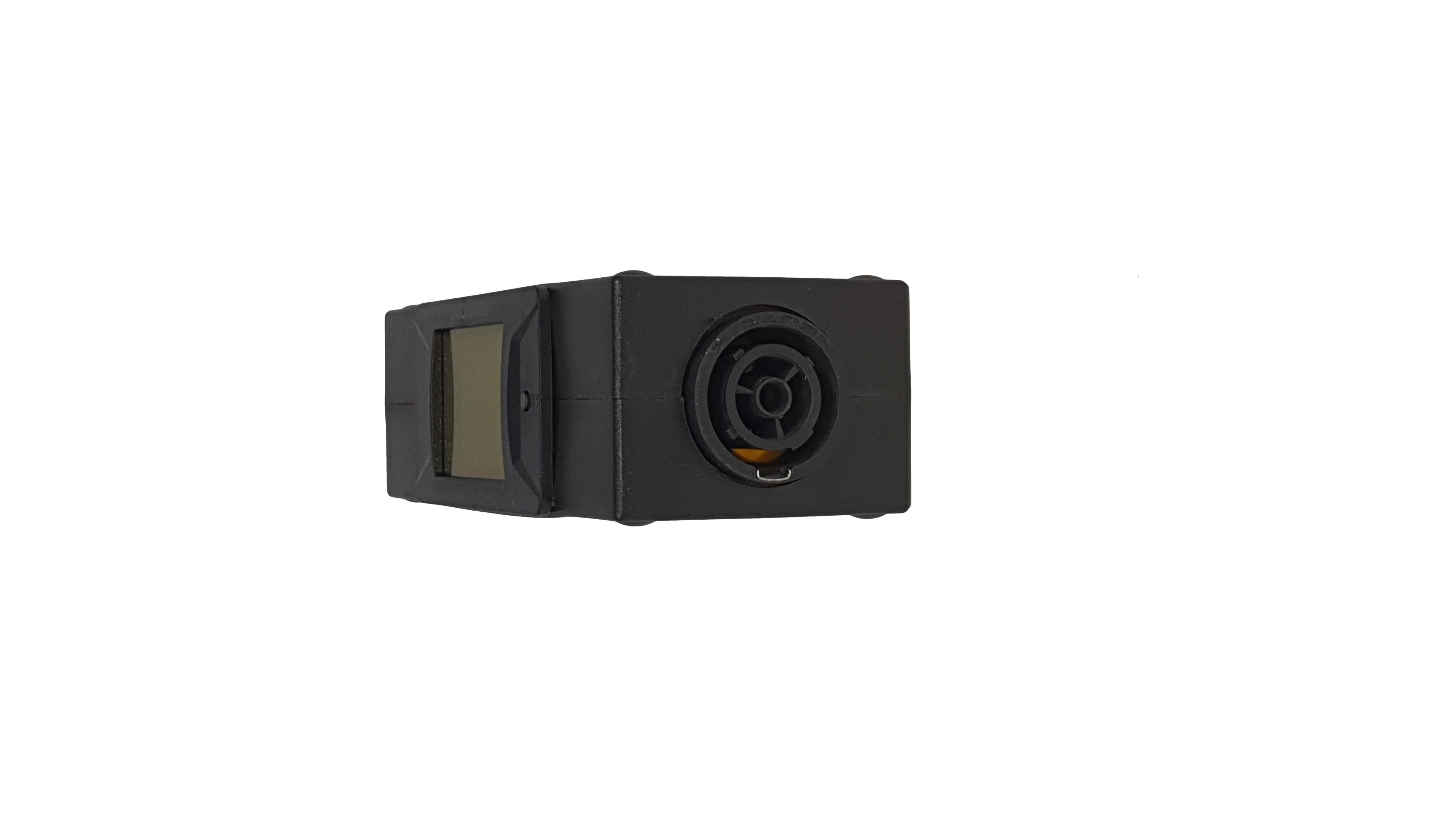

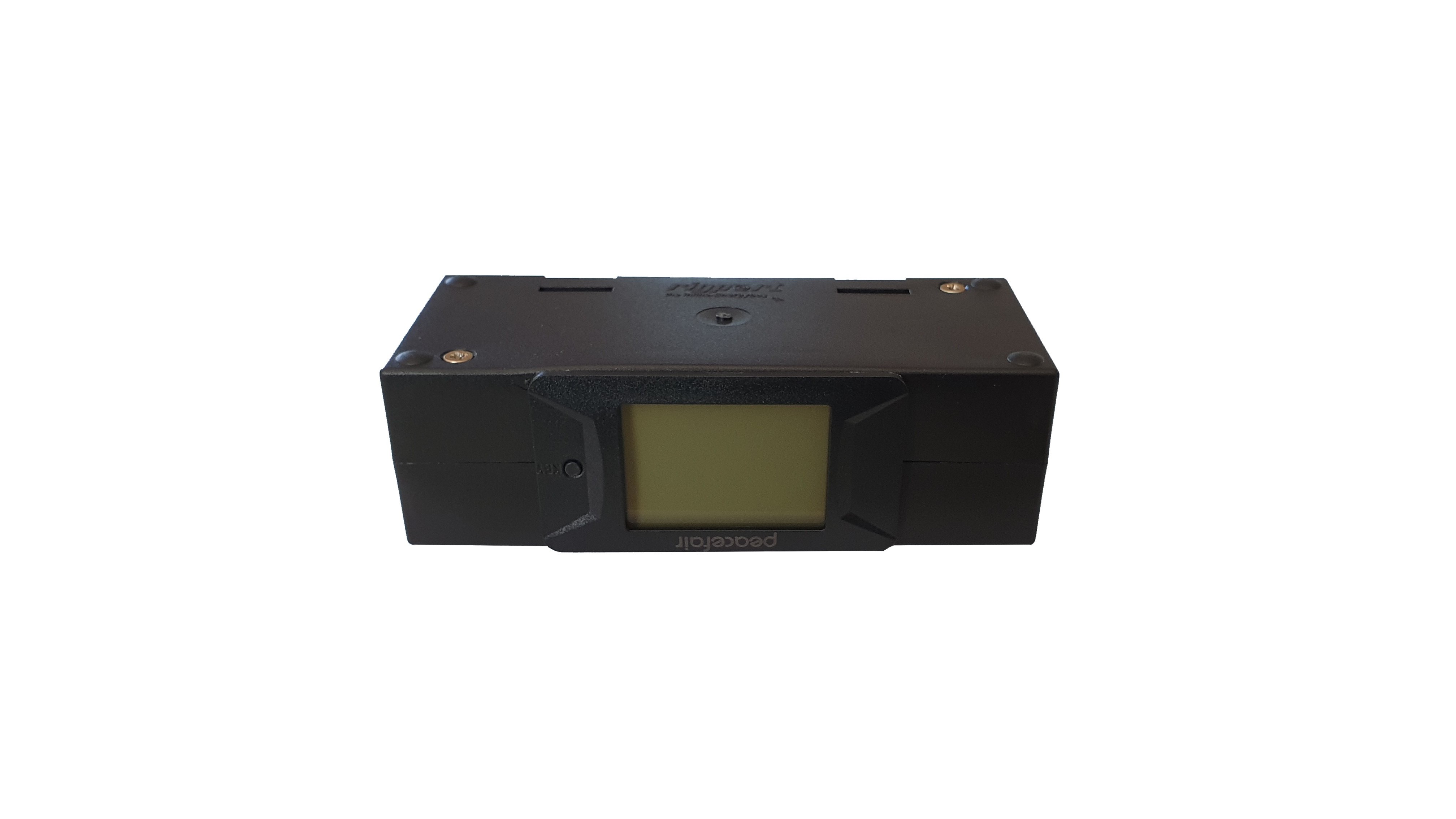

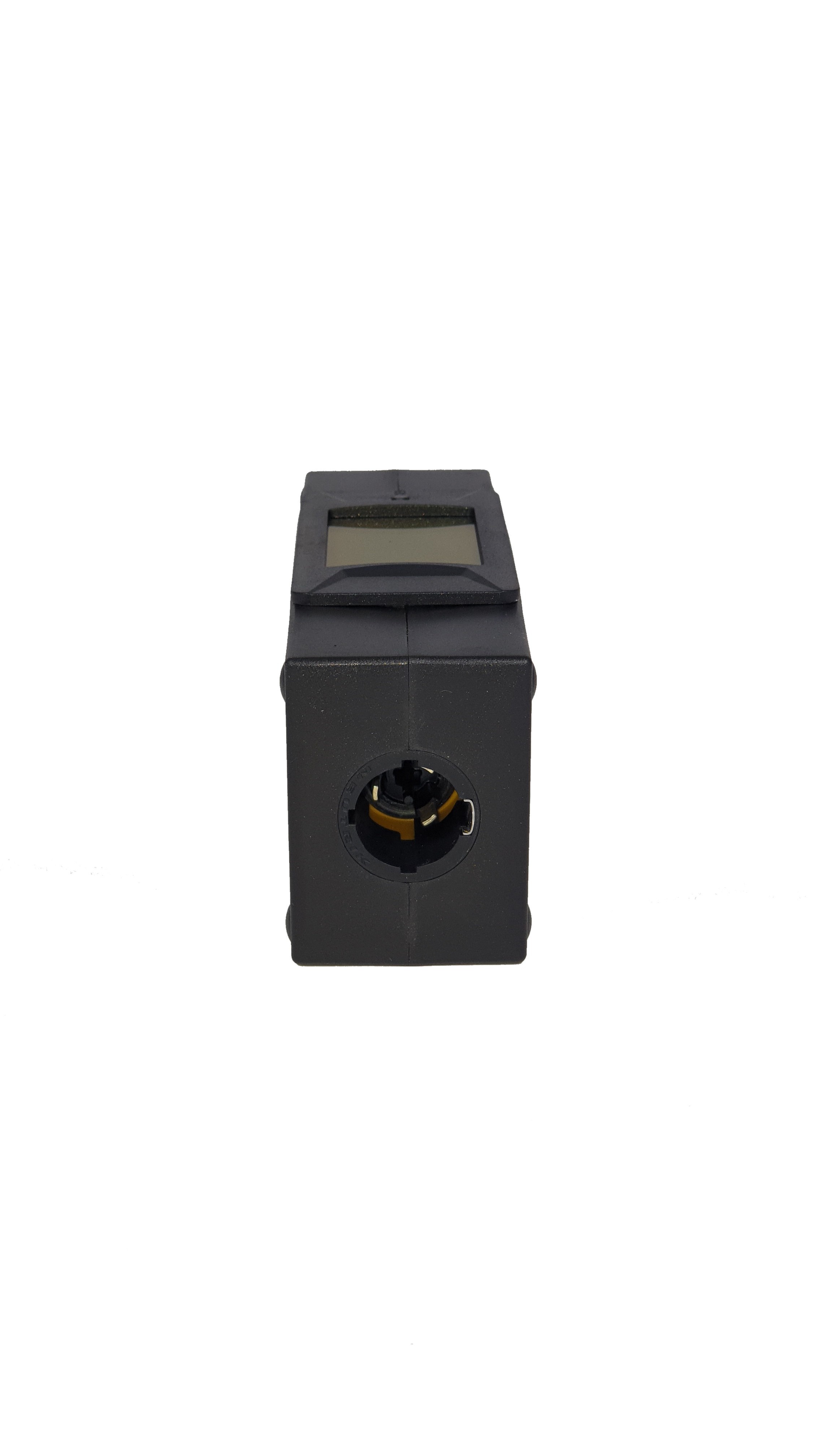

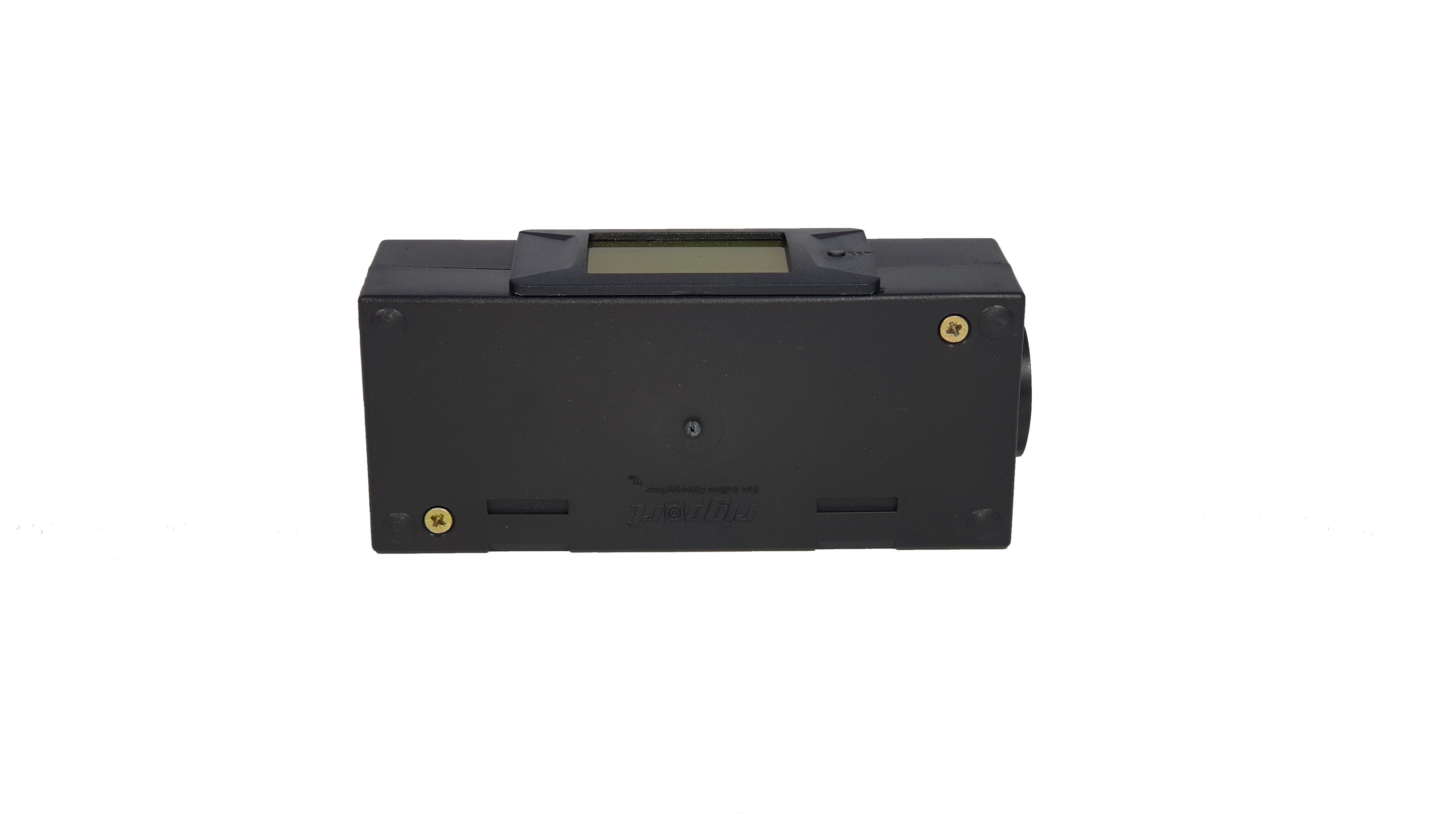

The RigPortL1T1PM is a simple Wi-Fi power monitor with voltage/current display with Powercon-True1 connections for looping into 1-phase Powercon-True1 supply lines.
Specific features:

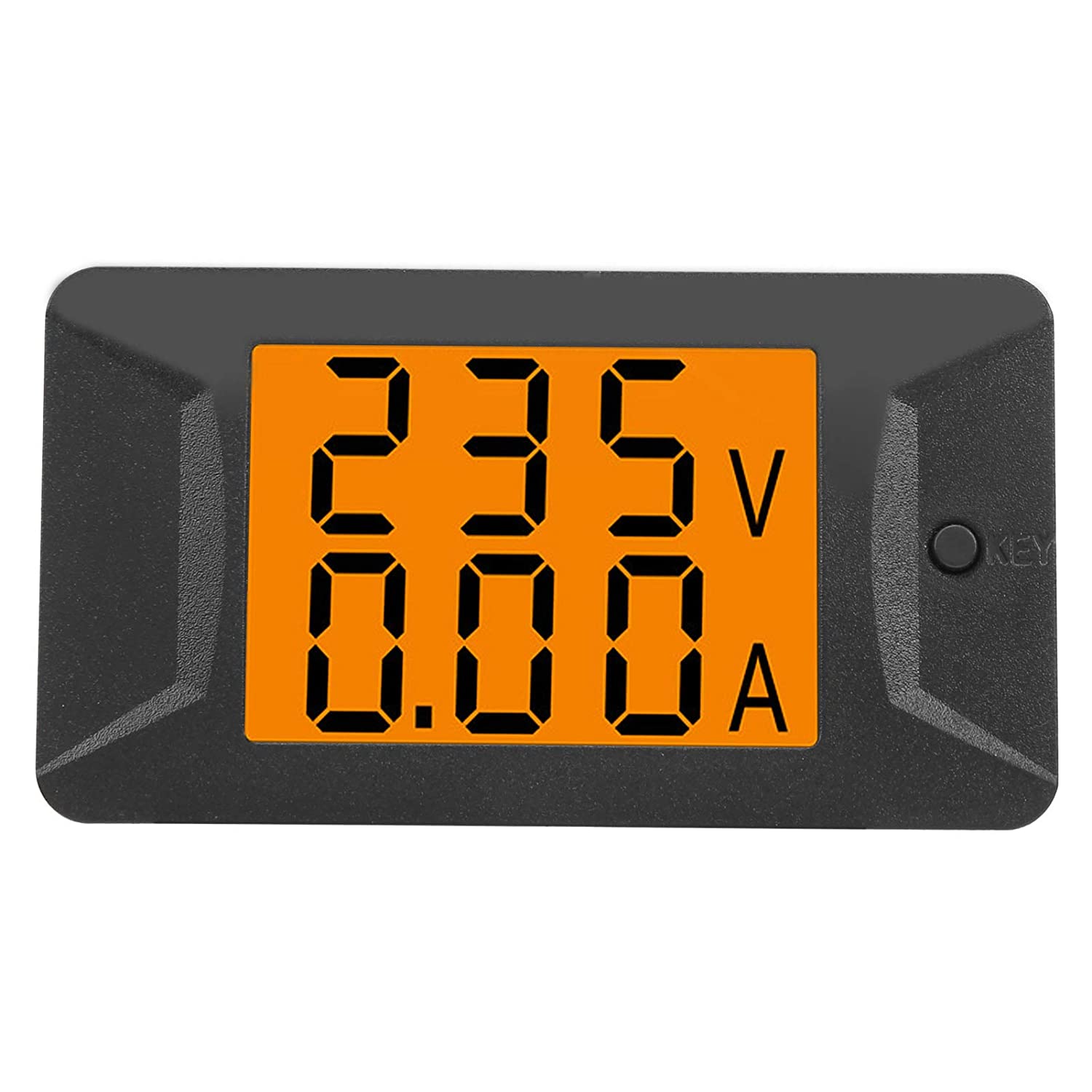

- 40-400V/100A high precision digital meter voltmeter ammeter

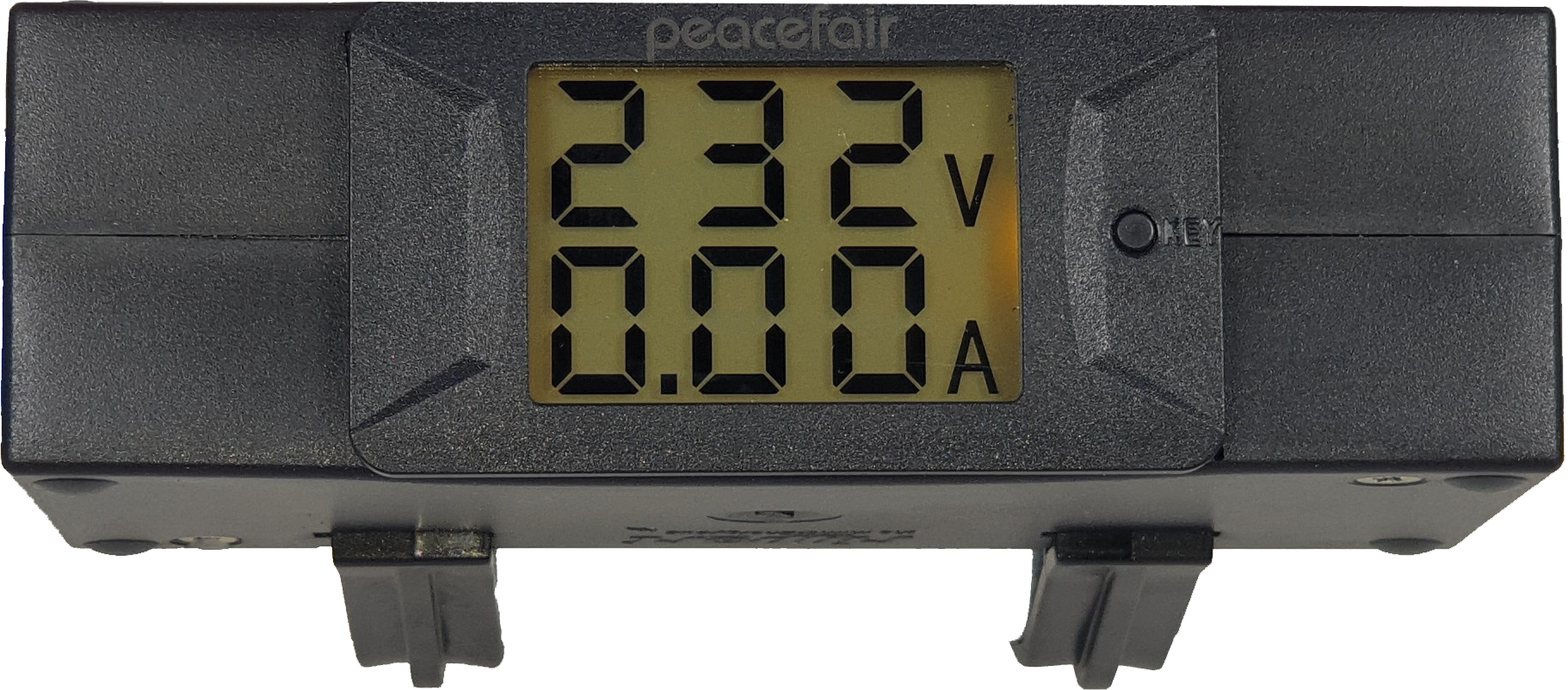

- LCD screen with wide viewing angle
- switchable backlight
- Voltage measurement range: 40-400V
- Measuring accuracy: ± 1%
- Current measurement range: 0-100A
- Starting current: 0.02A
- Measuring accuracy: ± 1%
- Wi-Fi measurement of current and voltage
- Shelly Plus PM mini
Connections:
- 1x Powercon-T1-In NAC3MPX-TOP
- 1x Powercon-T1-Through Out NAC3FPX-TOP
Technical data:
| Conductor cross-section: | 1,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Polyamid |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 133x43x56mm |
| Protection class: | IP20 |
| Weight: | 250g |
Login
Accessory Items

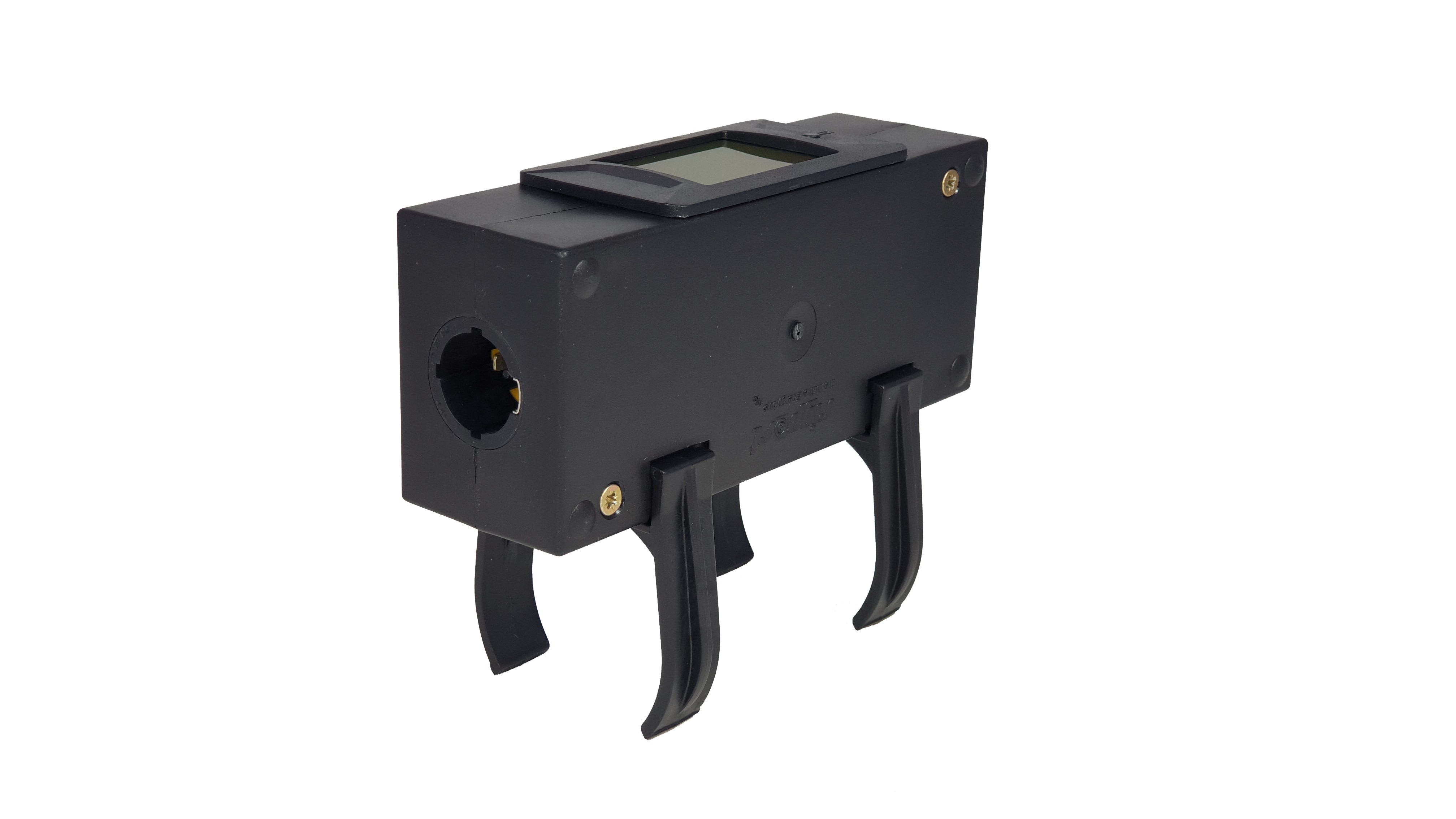

The RigPort Clamp is a truss clamp (50mm) for quick fixation of the RigPort line. Two clamps are required per port.Attention: this is not a lifting device, which is why a secondary safety device may be required!not compatible with L1S4 line Technical data:

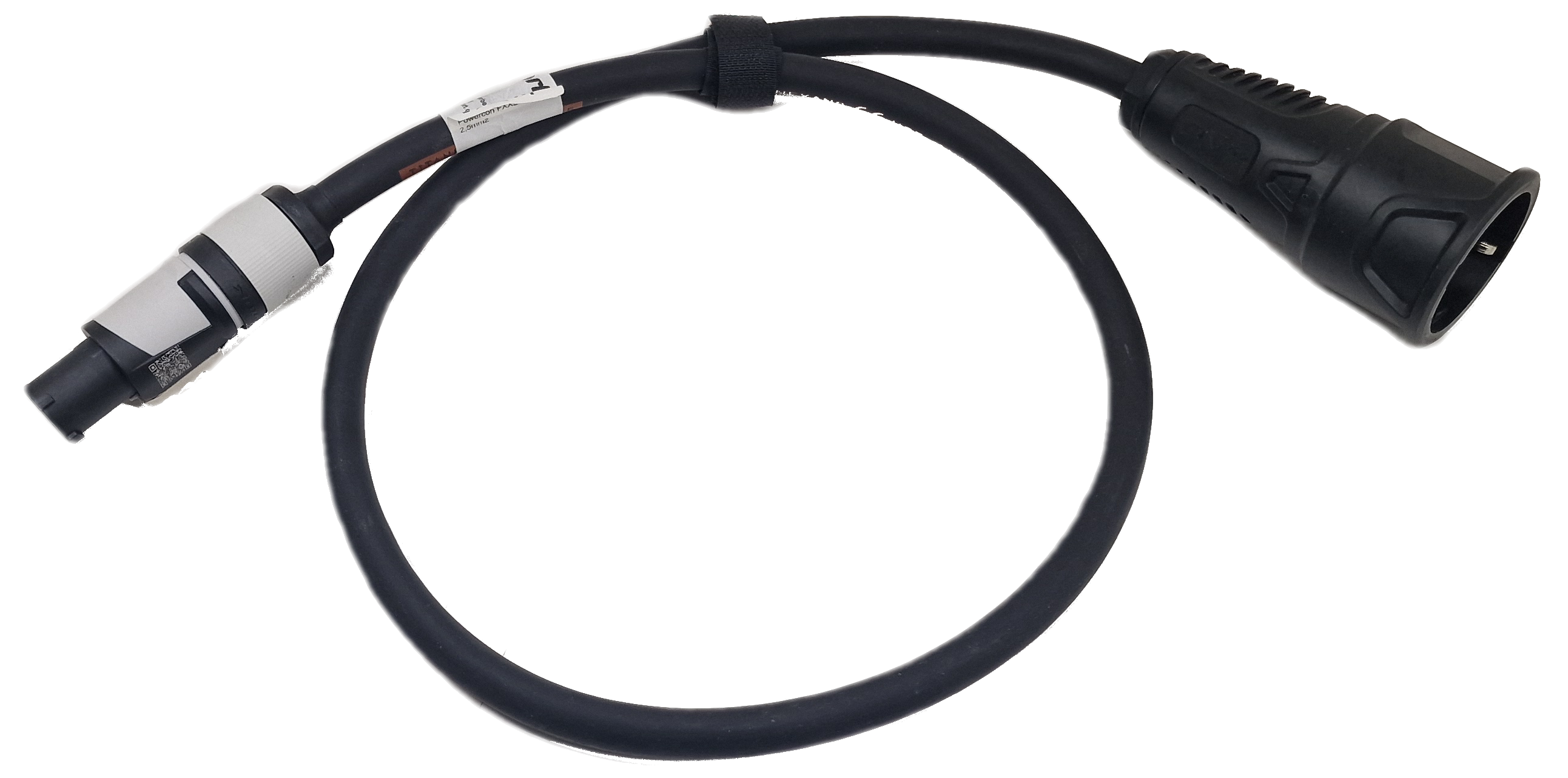

Adapter, 1m, NAC3FCB-Schuko 2.5mm²Specific features:Neutrik Powercon, PCETitanex cableCable VelcroConnections: 1x Powercon-In (m/wh)1x Schuko-Out (f)Technical data:

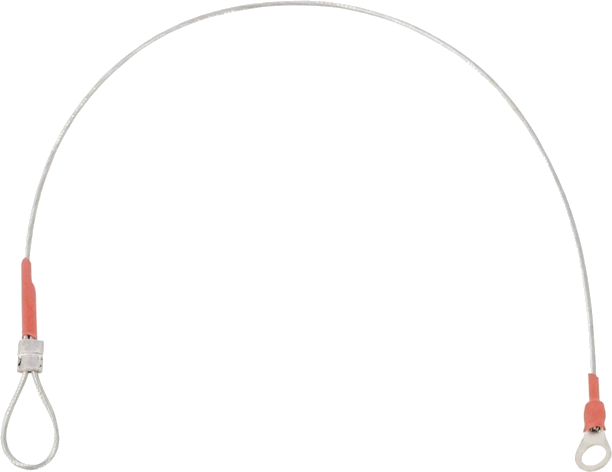

The RigPortSafety is a safety rope to secure the RigPorts.Specific features:protects up to 2kg600x1.5mmsilverConnections:1x Thimble / 1x Adapter RigPortTechnical data:

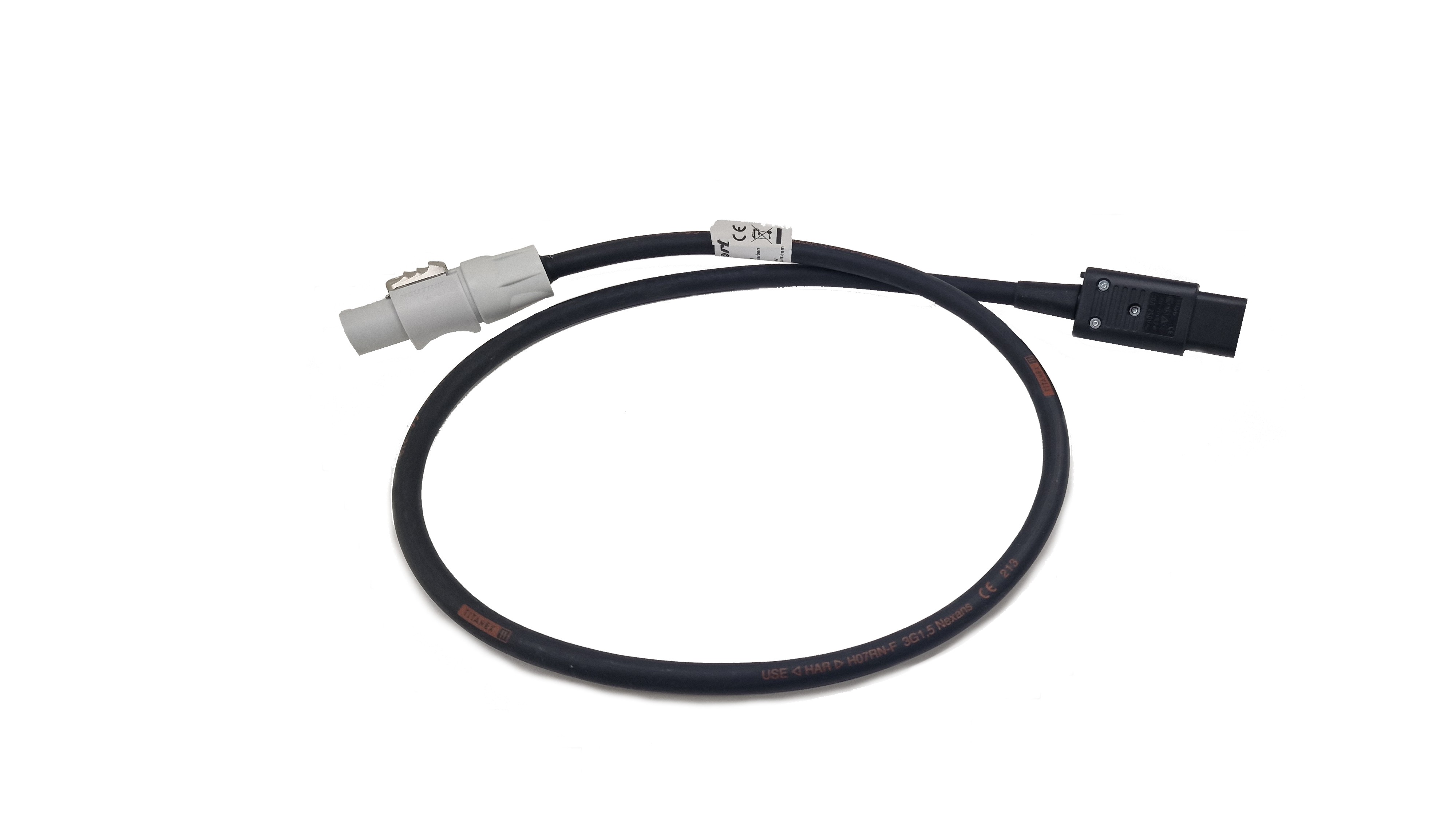

Adapter, 1m, NAC3FCB-IEC C15, 1,5mm²Specific features:Neutrik Powercon, PCETitanex cableCable VelcroConnections: 1x Powercon-In (m/wh)1x IEC C60350 C15(A)-Out (f)Technical data:
Accessory Items

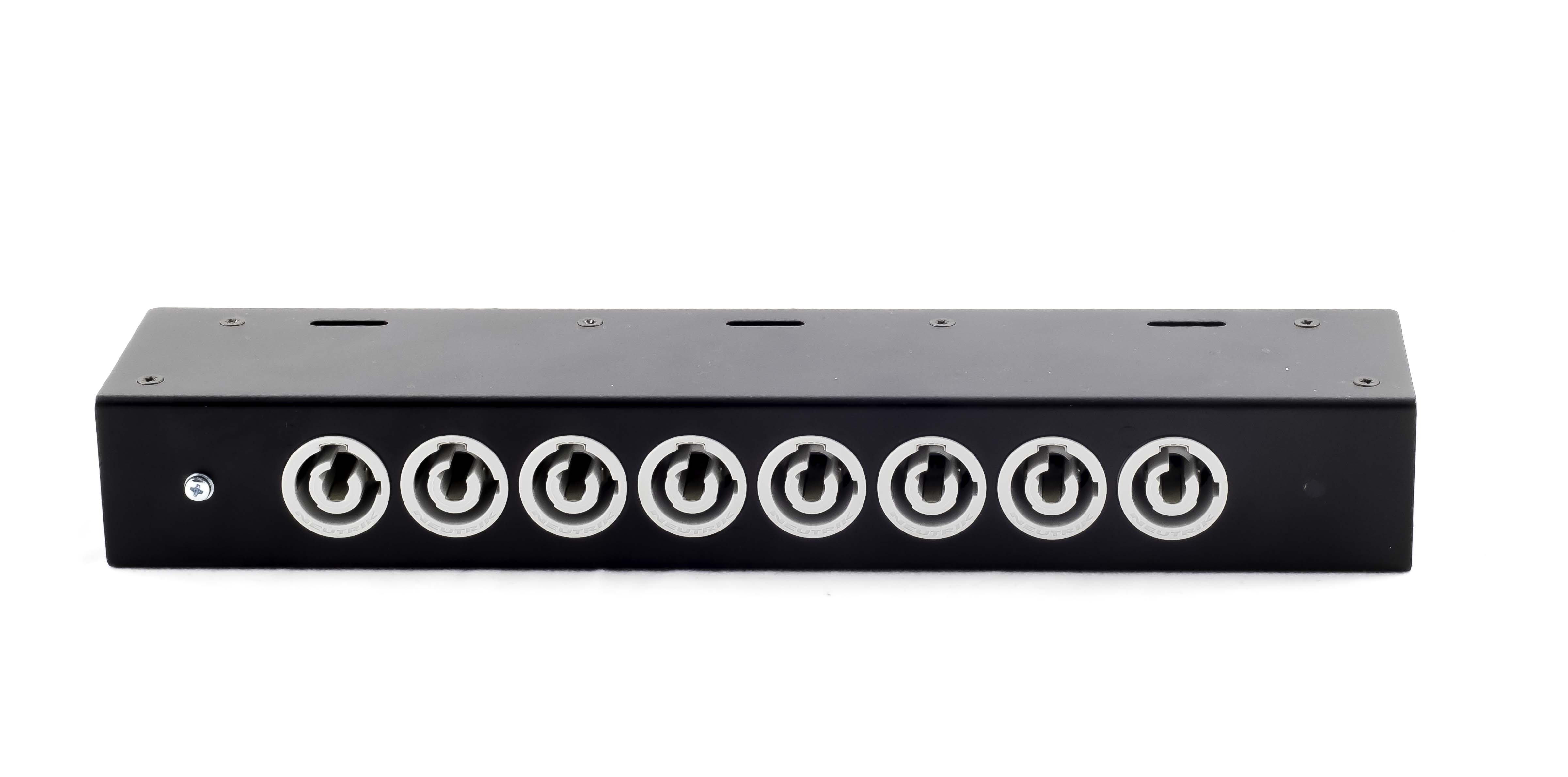

The Rigport8x is an 8-way Powercon distributor suitable as a central star distribution for many devices in a nearby area.Specific features:subtle designvery stable metal housingsafe and firm latchesCan be positioned variably in the traverseM10 screw mount for attaching couplers, trigger clamps or similar.enables fast cablingeasy to combineRigPort Safety available for secondary backupConnections:1x Powercon-In8x Powercon-Out1x Powercon-Through OutTechnical data:
