WatchDogL1S1T1
€106.62
Available, delivery time: 3-5 days
Product information "WatchDogL1S1T1"

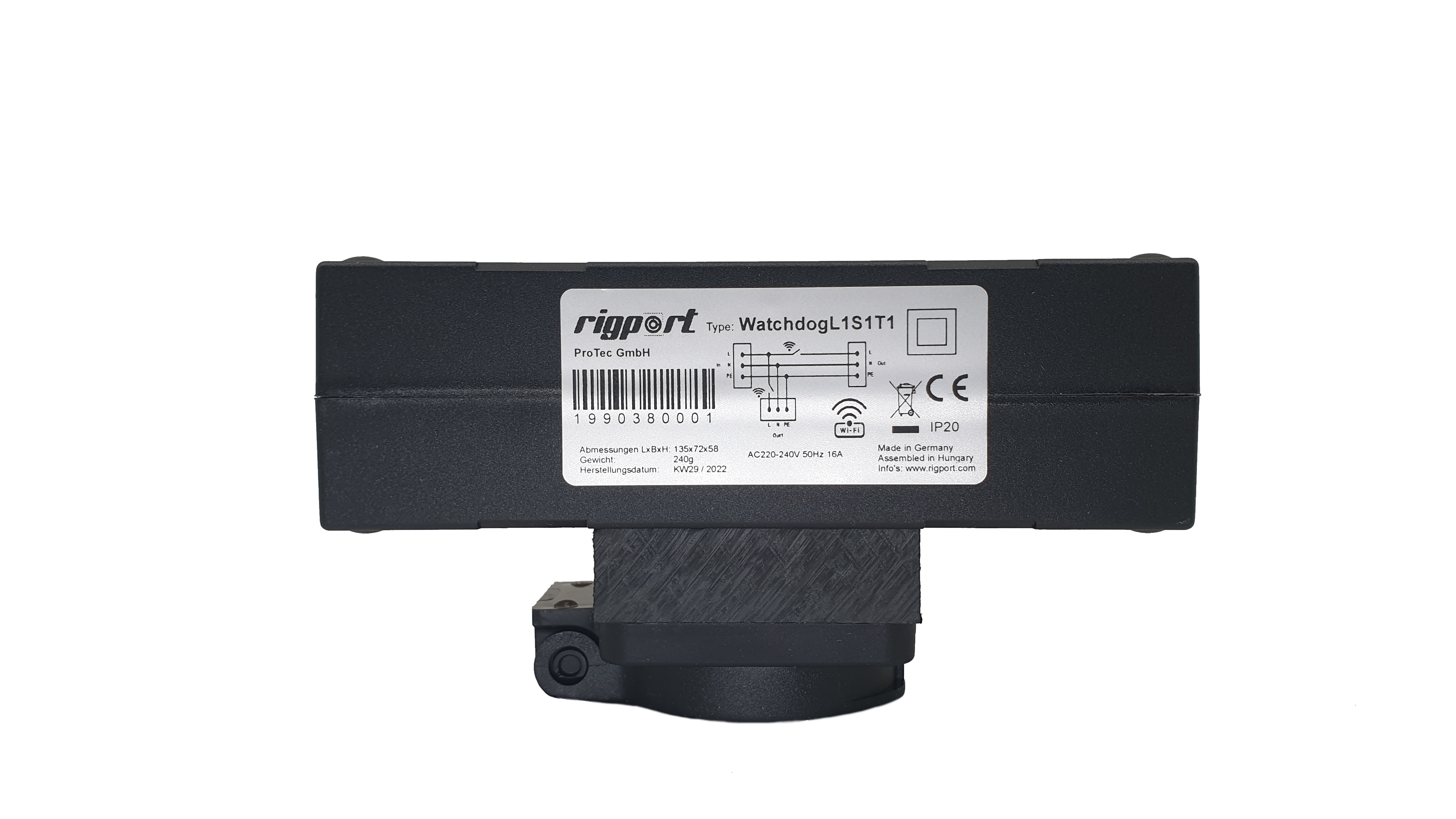

The WatchDogL1S1T1 is a smart Wi-Fi power monitor with online voltage/current measurement for looping into 1-phase Powercon True1 supply lines.
Specific features:
- two programmable 16 amp switching outputs (WatchDog function for limit values)
- Power measurement on each channel

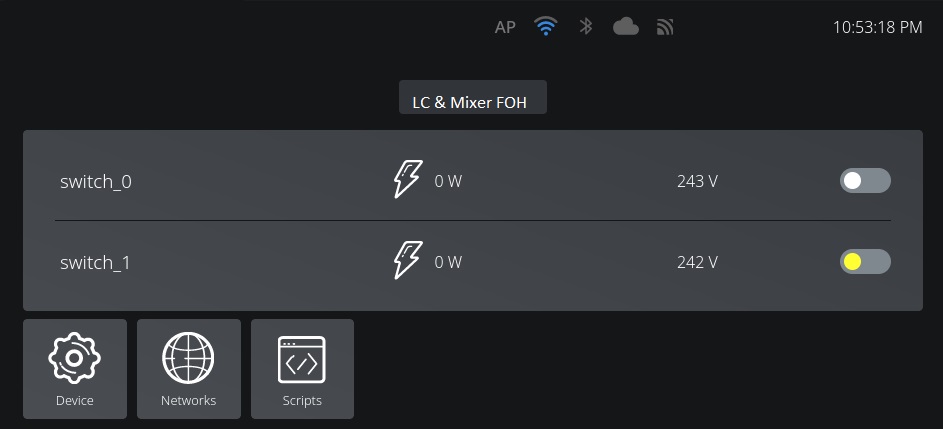

- Web server for monitoring and configuration
- Wi-Fi, MQTT, Bluetooth...
- Performance measurement with data storage
- Smart schedules, scripting, webhooks
- Shelly Plus 2PM
Connections:
- 1x Powercon-T1-In NAC3MPXXA
- 1x Schuko breakout
- 1x Powercon-T1-Through Out NAC3MPXXB
Technical data:
| Conductor cross-section: | 1,5mm² |
|---|---|
| HS Code: | 85369010 |
| Material: | Polyamid |
| Maximum current: | 16A |
| Maximum temperature: | 55°C |
| Measurements: | 133x59x57mm |
| Protection class: | IP20 |
| Weight: | 200g |
